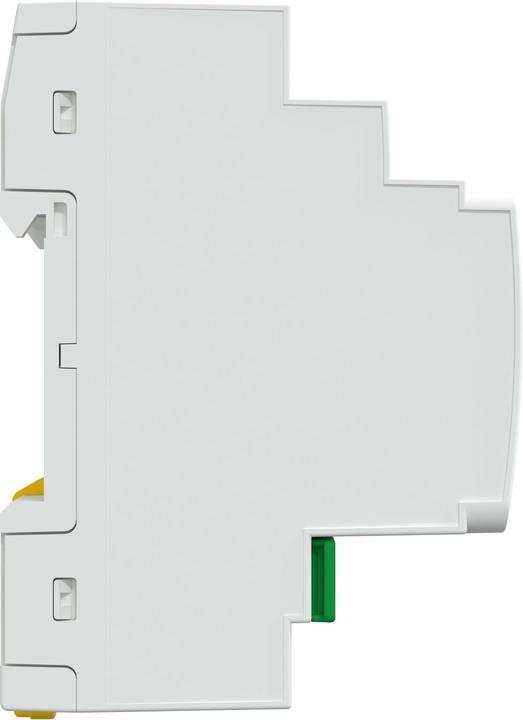

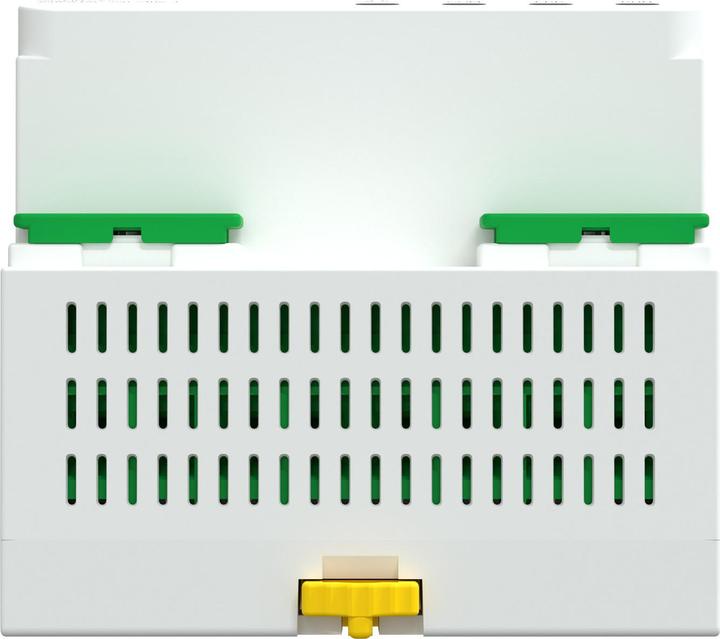

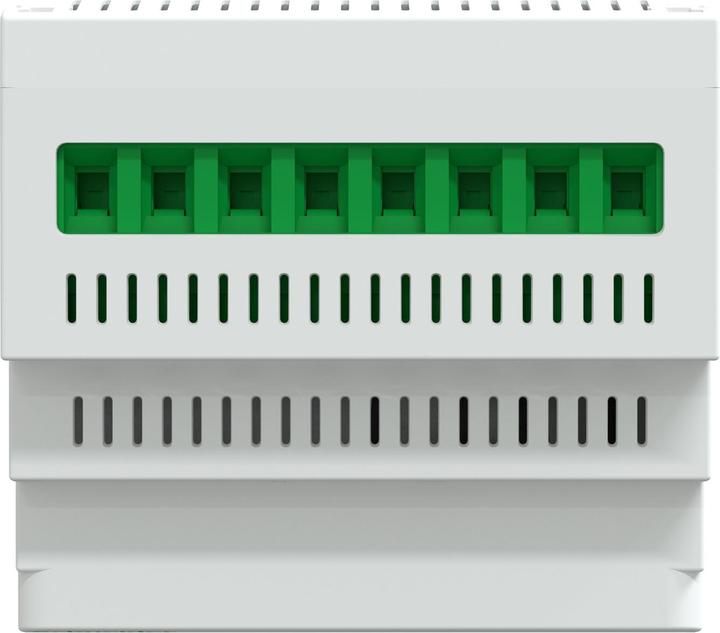

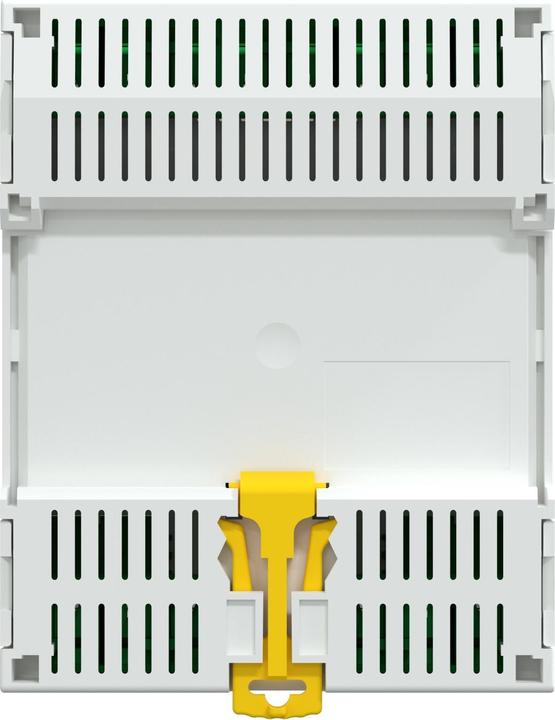

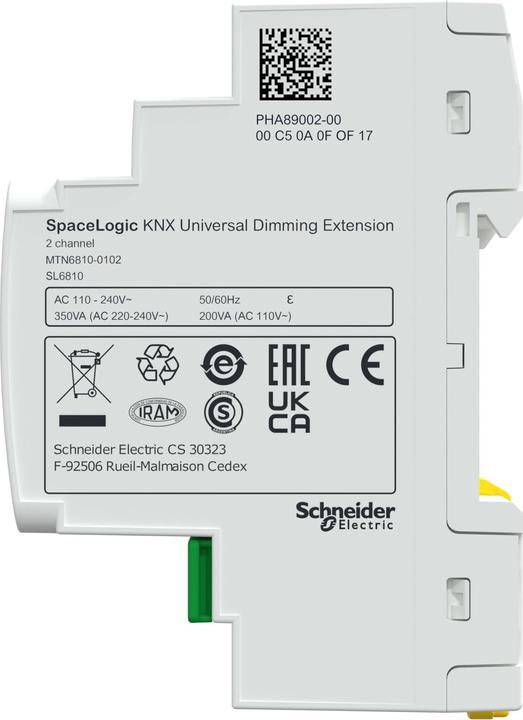

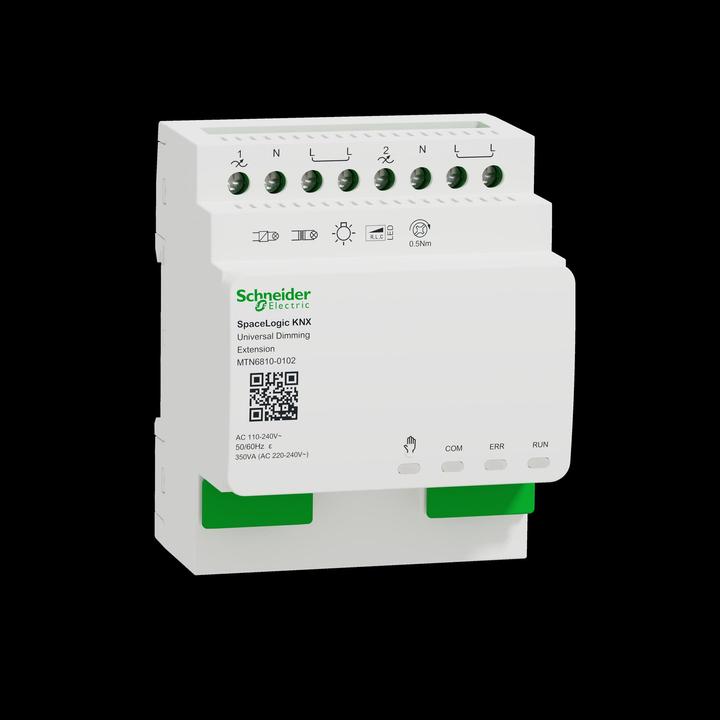

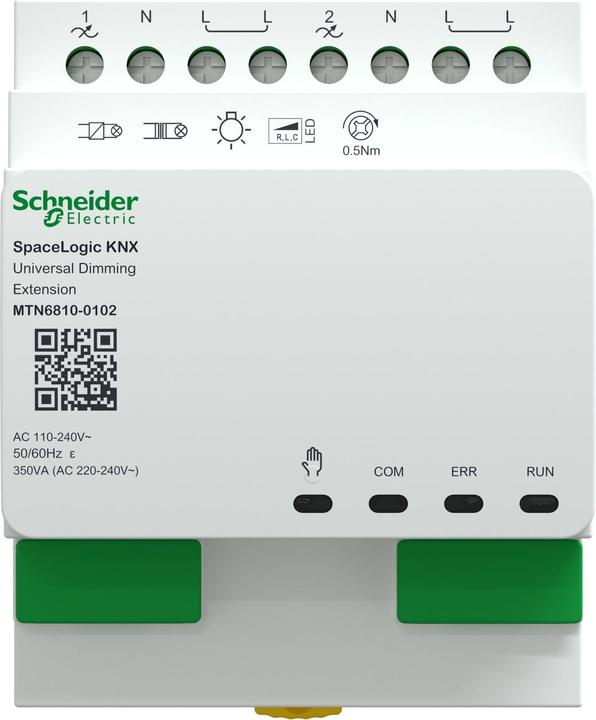

Schneider Electric extension dimmer MTN6810-0102

Manufacturer: Schneider Electric
Designation: Extension dimmer SpaceLogic KNX
Type: MTN6810-0102
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Design: Dimming actuator
Mounting type: REG
Width in subdivision units: 4
With bus coupling: Yes
Bus module removable: Yes
Extension input: No
On-site/manual operation: Yes
With LED display: Yes
Number of outputs: 2
Output power: 2 to 350 W
Power add-on usable: No
Load type: Universal
Max. control current: 1800 mA
Control current: 1800 mA
Voltage: 230 V
Parallel operation possible: No
Frequency: 50 to 60 Hz
Protection class (IP): IP20
Min. depth of device box: 66 mm

Universal dimmer 2-fold, REG, extension SpaceLogic KNX dimmer, 2-fold extension for independent control of up to 2 dimmable loads. Such as dimmable LED lamps, incandescent lamps, HV halogen lamps, LV halogen lamps using dimmable wound transformers or electronic transformers, or dimmable compact fluorescent lamps. All outputs can be operated manually by pushbuttons. ETS programming is performed in the ETS application of the master. The master controls the function of the extension, the power supply, and the communication to the KNX bus. With screw terminals, short circuit, open circuit, and over temperature protection with soft start lamp start. All outputs can be manually operated with push buttons of the master: On/Off, Dim Up/Down, LED mode/Auto mode, On two-button operation. For mounting on DIN rails TH35 according to EN 60715. The connection to the master or another extension is made either with a connection module or connection cable. EAN: 3606481816993.
