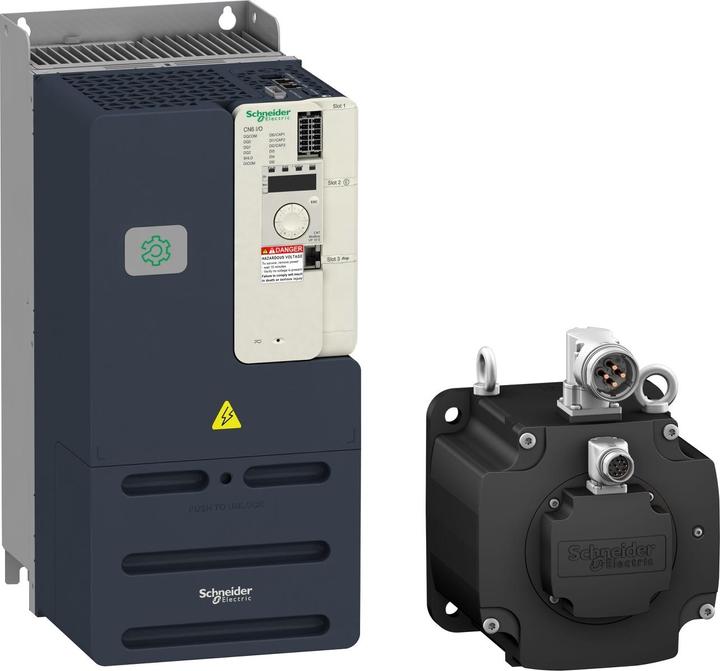

LXM32 servo amplifier from the Lexium 32 servo drive series. This single-channel servo amplifier is designed to enhance machine performance through optimized motor control and simplifies installation with its compact book-style design. This series features three expansion slots for selectable fieldbus, encoder, and safety modules. Inputs for pulse control are available. Operating modes such as referencing, manual operation, motion sequence, electronic gearing, speed, current, and position control are included. The safety function STO is integrated, and additional functions can be provided via the optional eSM card. Power supply is through a three-phase connection to networks with 200-240/380-480 VAC. An EMC filter of class C3 is built-in. For driving a servo motor, a continuous current of 40 A and a peak current of up to 100 A are available, which corresponds to a power of up to 11 kW (depending on voltage). When used with the BSH and BMH series servo motors, optimal operation of the motion servo controller is ensured. Thanks to the Green Premium environmental label, you can obtain detailed information on material content, environmental impact, and circular attributes that support your sustainability goals.
