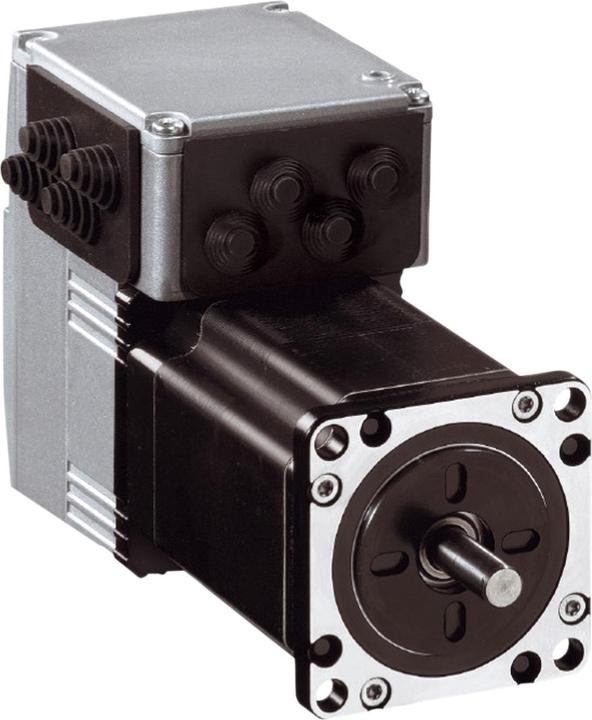

Integrated stepper motor from the Lexium ILS1 series. This series of decentralized drives consists of a compact unit of a 3-phase stepper motor with associated control electronics in a small form factor. These motors are characterized by a high continuous holding torque and good running characteristics. This stepper motor has a maximum torque of 1.5 Nm and a holding torque of 1.7 Nm. The winding is designed for medium speeds. Control is done via pulse/direction with 5V. The measurement system transmits an index pulse. As a safety feature, control inputs for STO are available. The supply voltage is 24-36 VDC, and the flange dimension for mounting is 57 mm. PCB connectors are available for the connection. There is no brake present. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
