Phase: 1, 3
Control function: Encoder feedback, motion
Supply voltage: 170 to 255 V (single-phase), 200 to 255 V (three-phase)
Rated current: 10 A
Operating voltage: 220 V
Power: 1.5 kW
Total length: 150 mm
Total width: 55 mm
Total depth: 170 mm
Operating temperature min: 0°C
Operating temperature max: +55°C

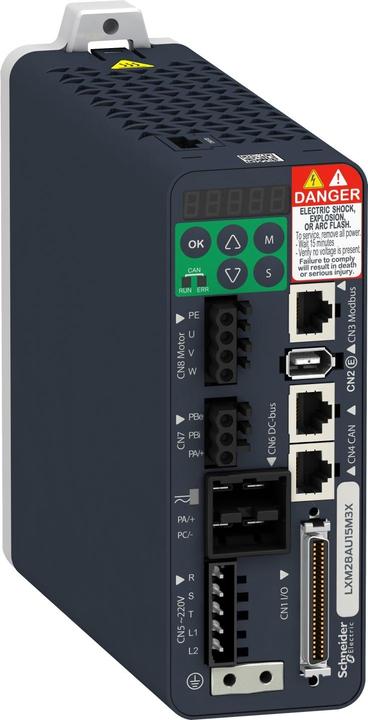

Lexium 28 IO servo drive. Schneider Electric Lexium 28 series AC servo drives are designed for use with BCH2 series servo motors. Lexium 28 servo drives feature standard digital and analog I/O, an interface for CANopen/CANmotion Fieldbus, and an encoder interface for BCH2 series servo motors. The servo drives include numerous features such as automatic tuning, position, speed and torque control, and position sequence mode. Additional capabilities include automatic motor detection, status monitoring, log function, relative or absolute positioning mode, velocity mode, and torque control mode.
