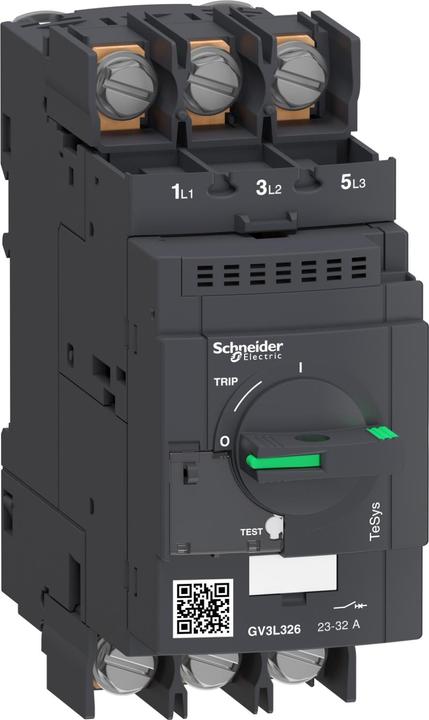

Schneider Electric motor-protective circuit-breaker GV3L326

Manufacturer: Schneider Electric
Designation: Motor-protective circuit-breaker, magnet
Type: GV3L326
Setting range of instantaneous short-circuit release: 448 A
With thermal protection: No
Phase loss sensitive: Yes
Tripping method: Magnetic
Rated operational voltage: 0...690 V
Rated uninterrupted current Iu: 32 A
Rated operational power at AC-3, 230 V: 7.5 kW
Rated operational power at AC-3, 400 V: 15 kW
Type of connection main circuit: Other
Design of operating element: Rotary knob
Type of device: Complete device in enclosure
With integrated auxiliary contact: No
With integrated undervoltage release: No
Number of poles: 3
Rated short-circuit breaking current Icu at 400 V, AC: 100 kA
Protection class (IP): IP20
Height: 132 mm
Width: 55 mm
Depth: 136 mm

Further details:
Motor-protective circuit-breaker up to 30 kW. With its new and patented Everlink terminal strip system, the TeSys GV3 motor-protective circuit-breaker offers an even more stable and reliable connection quality. The clamping pressure on the cables remains stable, strong, and continuously safe, even under difficult conditions. Common accessories to the GV2 and GV3 series offer significant simplification and clear time savings during installation.
