TE Sensors Position Switch XCSPL592

Manufacturer: TE Sensors
Designation: Position Switch Ö+S M16 Left Angle
Type: XCSPL592
Width of the Sensor: 103 mm
Diameter of the Sensor: 0 mm
Height of the Sensor: 88 mm
Length of the Sensor: 30 mm
Rated Operating Current Ie at AC-15, 24 V: 0 A
Rated Operating Current Ie at AC-15, 125 V: 6 A
Rated Operating Current Ie at AC-15, 230 V: 3 A
Rated Operating Current Ie at DC-13, 24 V: 0 A
Rated Operating Current Ie at DC-13, 125 V: 0.55 A
Rated Operating Current Ie at DC-13, 230 V: 0.27 A
Switching Function: Other
Latching Switching Function: No
Electronic Output: No
Forced Opening: No
Number of Contacts as Normally Open: 1
Number of Contacts as Normally Closed: 1
Interface Design: None
Interface Design for Safety-Related Communication: None
Housing Design: Cuboid
Material of the Housing: Plastic
Coating of Housing: Other
Design of the Actuating Element: Pivot Lever
Orientation of the Actuating Element: Other
Design of the Electrical Connection: Other
With Status Indicator: No
Suitable for Safety Functions: Yes
Explosion Protection Category for Gas: None
Explosion Protection Category for Dust: None
Ambient Temperature during Operation: -25..70 °C
Protection Class (IP): IP67K

TE Sensors Position Switch XCSPL592: Additional Details

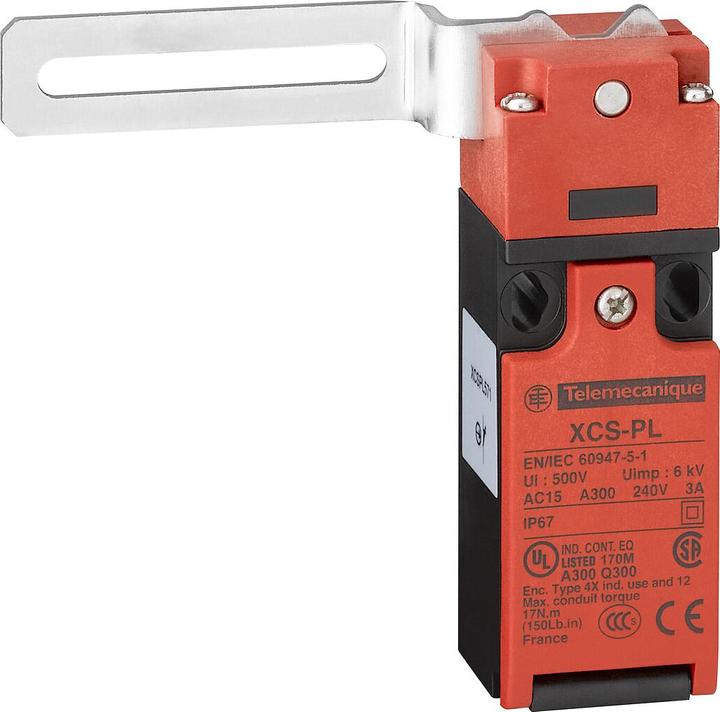

Safety position switch made of plastic with pivot lever or rotary axis. XCSPL safety position switch with 90° angled pivot lever to the left, 1 Normally Open + 1 Normally Closed, M16. Convertible drive head, protection class IP 67, 1 cable entry M16 x 1.5. Auxiliary switch with forced opening without jump function, dimensions of the switch body 30 x 30 x 87.5 or 96.3 mm. EAN: 3389110866544.
