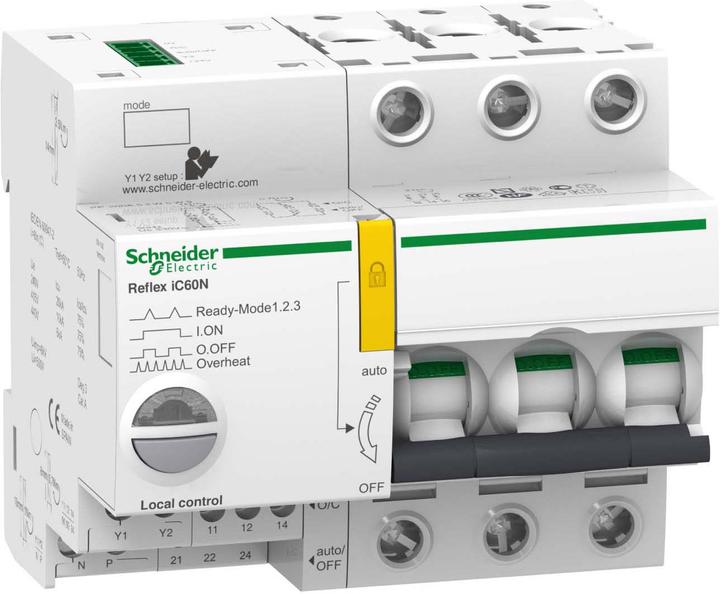

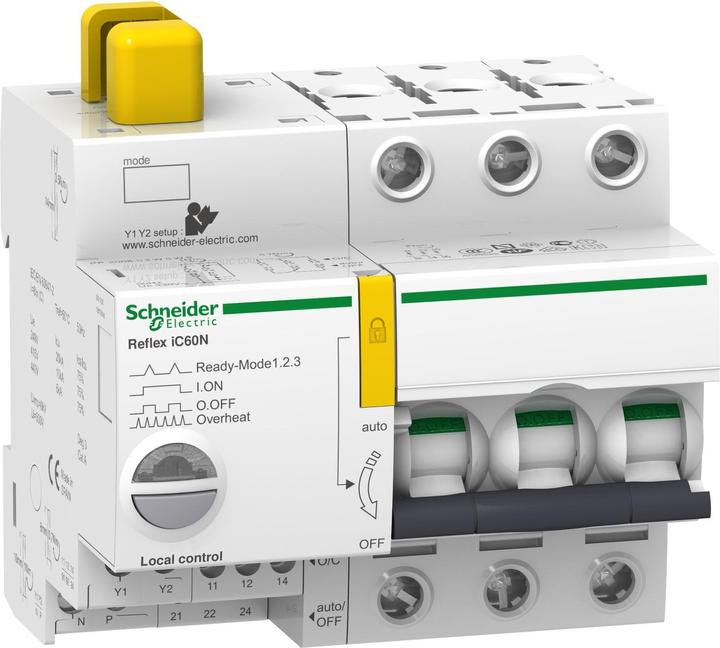

Remote-controlled circuit breaker Acti 9 Reflex iC60N, with a breaking capacity of 20 kA at 220-240 V AC (EN/IEC 60947-2) and 10 kA at 380-415 V AC (EN/IEC 60947-2). 3-pole, rated current 25 A, D-characteristic, Ti24 interface, insulation voltage (Ui) 500 V. Remote switching via pulse and/or continuous signal according to one of the three user-selectable operating modes. Protects circuits against short-circuit currents and overload currents. Disconnects circuits. Equipped with a Ti24 connection for direct integration with PLCs or decentralized I/O. Bistable switching mechanism requires no holding power. Green indicator on the switch ensures that the contacts are open, providing safe operation on the outgoing side. Jump switching ensures low-wear contact operation. Operating status indicator light. Control through three adjustable operating modes via the push button on the front of the device. Protection class IP20. The iMDU relay can be used to control inputs Y1 and Y2 with 24/48 V AC/DC. Color shade RAL 9003. The remote-controlled circuit breaker Reflex iC60N complies with the following standards: IEC/EN 60947-2.
