Schneider Electric Replacement protection module
Price in EUR including VAT
free shipping

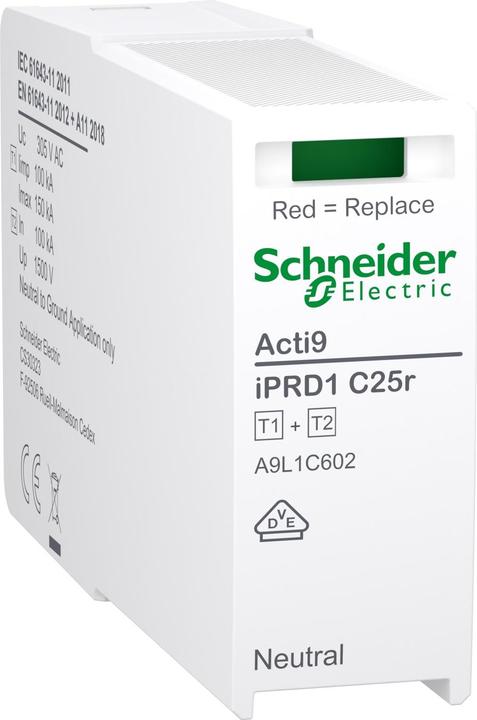

The replacement protection module from Schneider Electric is a highly advanced surge protection device specifically designed for use with the combined surge protectors iPRD1 C25r 3P+N and iPRD1 F25r 3P+N. It provides reliable protection against surges and lightning strikes, enhancing the safety of electrical systems. The module is suitable for a rated voltage of 240 V AC (50/60 Hz) and ensures high performance with a nominal discharge current of 100 kA and a maximum discharge current of 150 kA. The integrated optical function and fault indicator allows for easy monitoring of the device's status. With an operating temperature range of -40 to +85 degrees Celsius, the module is suitable for a variety of environments and complies with international standards IEC 61643-11:2011 and EN 61643-11:2012.
Surge protection type | Combination arrester |
Number of conductors | 1 x |
Test class | Type 1 |
Mounting type | Top-hat rail |
Item number | 46855407 |
Manufacturer | Schneider Electric |
Category | Surge protection |
Manufacturer no. | A9L1C602 |
Release date | 25.6.2024 |
Surge protection type | Combination arrester |
Number of conductors | 1 x |
Lightning impulse current | 100 kA |
Rated leakage surge current | 100 kA |
Nominal voltage | 240 V |
Protection level | 1.50 V |
Mounting type | Top-hat rail |
Mounting type | Engagement |
Test class | Type 1 |
Protection type (IP code) | IP20 |
Country of origin | Slovenia |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Length | 0.07 m |
Width | 0.02 m |
Height | 0.05 m |
Weight | 115 g |
Product Safety |
