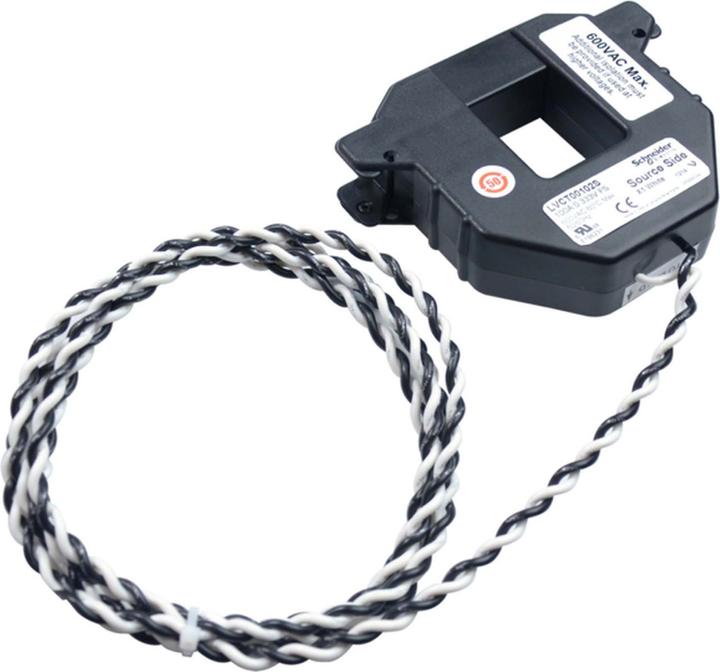

The SCHN current transformer from Schneider Electric is a highly advanced low-voltage current transformer specifically designed for integration into existing systems. It is ideally suited for retrofitting energy meters and network analyzers that accept a low-voltage current transformer input. With a rated current capacity of 200 A and an output of 0.333 V, this transformer provides precise and reliable measurements. The transformer is designed for a frequency range of 50/60 Hz and ensures an accuracy of 1% over a wide range from 10% to 100% of the rated current. The lead has a length of 1.8 m, which can be extended up to 10 m if needed, allowing for flexible installation. Its compact dimensions and easy integration make this transformer a practical solution for various applications in energy monitoring and analysis.

• Suitable for PowerLogic EM4235, Acti 9 iEM3455 and iEM3465, as well as ION9000
• Precise measurement with an accuracy of 1% from 10% to 100% Ipn
• Frequency range of 50/60 Hz for versatile applications
• Flexible lead length of 1.8 m, extendable to 10 m
• Compact design with dimensions of 100 x 96 x 30 mm.
