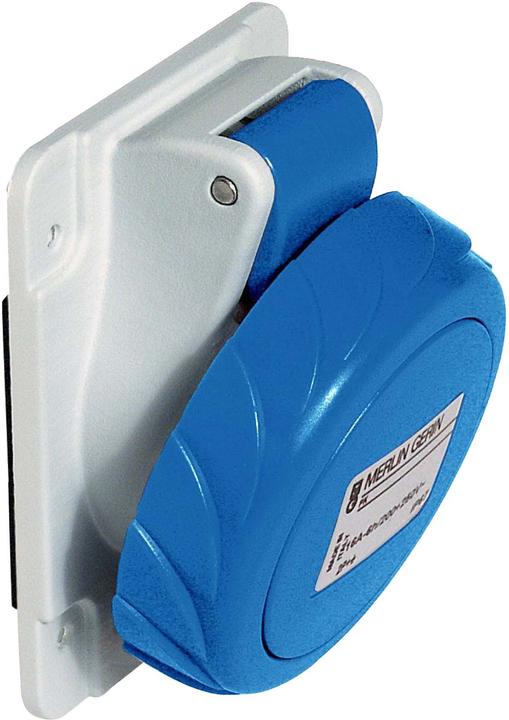

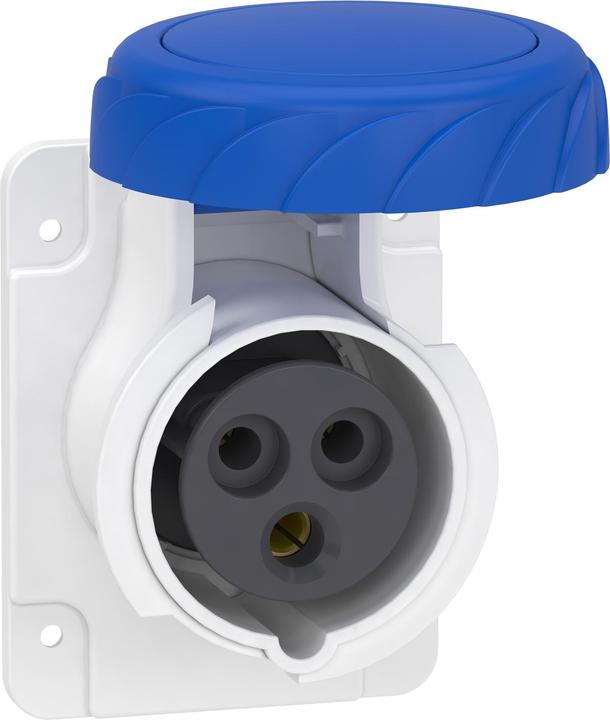

Schneider Electric Industrial Socket PKF16G723

Manufacturer: Schneider Electric
Designation: Straight industrial socket, 16A, 2-p+E
Type: PKF16G723
IEC Current Rating: 16 A
Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
Rated Voltage: 200..250 V
Rated Frequency: 50..60 Hz
Number of Poles: 3
Clock Position: 6 h
Identification Color: blue
RAL Number: 7035
Protection Class (IP): IP67
Connection Technology: Screw terminal
Plug Orientation: Straight
Cable Entry: None
Material: Plastic
Military Version: No
Vertical Flange Dimension: 85 mm
Vertical Hole Spacing: 60 mm
Horizontal Flange Dimension: 65 mm
Horizontal Hole Spacing: 52 mm

Additional Details: PratiKa straight mounting socket. It features 2P+E poles, a rated current of 16 A, and an operating voltage of 230 VAC. The dimensions of the base plate are (W) 65 mm x (H) 85 mm. The protection class is IP65 and IK09. The fire resistance is 850 °C. The cable entries are designed for flexible or rigid cables. The cross-section of cables for 16 A is from 1 mm² to 4 mm². The color of the base is light gray (RAL 7035) and allows the operating voltage to be easily identified in blue. The frequency is either 50 Hz or 60 Hz. The contact clock position is 6 h.
