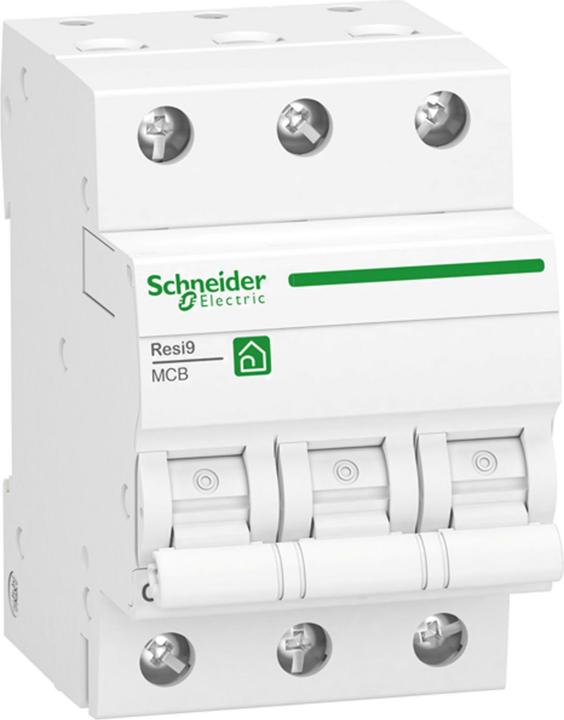

Schneider Electric SE R9F28316 Miniature circuit breaker Resi9 3P, 16A, C characteristic, 10kA

Price in EUR including VAT
Ratings
BrandMore from Schneider Electric
Delivered between Wed, 15.4. and Fri, 17.4.
More than 10 pieces in stock at supplier
Free shipping starting at 30,–

Product details

The SE R9F28316 circuit breaker Resi9 from Schneider Electric is a reliable and safe device designed for use in electrical installations. With a rated current of 16A and a C-characteristic, this three-pole circuit breaker provides effective protection against overcurrent and short circuits. The tripping capacity of 10kA according to IEC/EN 60898-1 ensures high safety and reliability in operation. The circuit breaker is designed for an operating voltage of up to 400V AC and can be used at frequencies of 50/60 Hz. Installation is straightforward on a DIN rail, making installation and maintenance easier. The dual-function terminal allows for flexible connections for cables and busbars, while the rear-mounted DIN rail fastening element ensures stable attachment. Additionally, the circuit breaker is equipped with a spring mechanism that enables low-wear and user-independent switching of the contacts.

  • Tripping capacity of 10kA according to IEC/EN 60898-1
  • Dual-function terminal for cables and busbars
  • Rear-mounted DIN rail fastening element
  • Spring mechanism for low-wear switching
  • Protection class IP20.

Key specifications

Circuit breaker type
Miniature circuit breaker
Mounting type
Top-hat rail
number of poles
3
Length
44 mm
Width
55 mm

General information

Item number
23119341
Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
R9F28316
Release date
16.11.2022
External links
Manufacturer's site (de)

Colour

Colour
White
Exact colour description
RAL 9003

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
Mounting type
Top-hat rail
number of poles
3
Tripping characteristic
C
Rated current
16 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
440 V
Protection type (IP code)
IP20

Origin

Country of origin
Bulgaria

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

CO₂ emissions
29,26 kg
Climate contribution
EUR 0,74

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
44 mm
Width
55 mm
Height
75 mm
