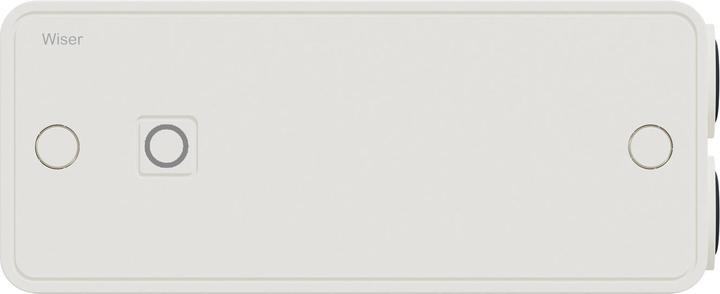

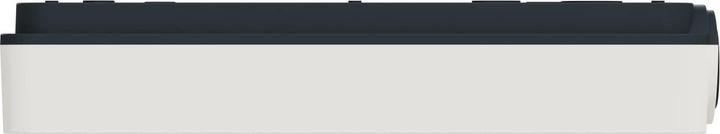

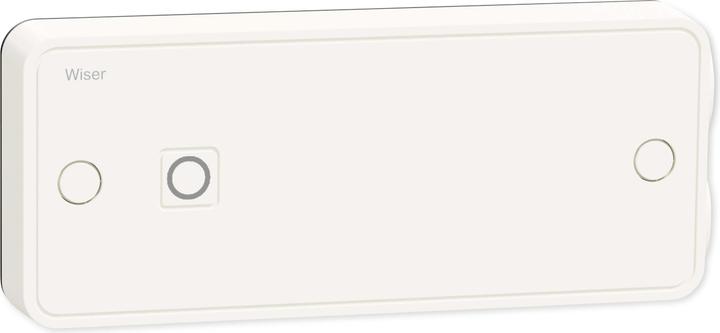

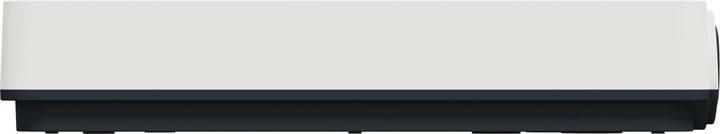

Schneider Electric Wiser Wireless Receiver Relay CCTFR6700

Manufacturer: Schneider Electric
Description: Wiser Wireless Receiver Relay 16A Temp.Sen.Connection
Type: CCTFR6700
KNX Bus System: no
KNX Wireless Bus System: no
Wireless Bus System: yes
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: Zigbee
Bidirectional Wireless: yes
Mounting Type: Surface-mounted
Local/Manual Operation: yes
With LED Display: yes
Max. Switching Power: 3680 W
Output Power: 3680 W
Suitable for C-Load: no
Max. Number of Switching Outputs: 1
Max. Switching Current: up to 16 A for resistive load and up to 3 A for inductive load
Rated Current: 16 A
Rated Operating Voltage: 220..240 V
Connectable to Different Phases: no
Power Consumption: 0.4 W
With Bus Coupling: yes
Bus Module Removable: no
Min. Depth of Device Box: 0 mm
Modular Expansion Option: no
Protection Class (IP): IP44

The Wiser Wireless Receiver Relay controls electric heating in a Wiser heating control system (Zigbee). It is a smart control system for electric heating solutions. Up to 64 devices including a hub can be connected through one system. More details can be found in the online documentation. Dimensions: 162 x 67 x 30 mm. Modular smart home integration via the Wiser system, APP control locally and remotely, schedules, moments (scenes), and automations via the Wiser Home APP. Zigbee 3.0. Control of heating devices up to 3000 W. Compact intermediate adapter for 2-wire connection. System configuration via the Wiser Home APP (online and offline), additional installation support via eSetup APP for qualified electricians.
