Schneider Electric Load Break Switch 33452

Manufacturer: Schneider Electric
Designation: Load Break Switch 800A, 690V AC
Type: 33452
Design as Main Switch: yes
Design as Maintenance/Repair Switch: yes
Design as Safety Switch: no
Design as Emergency Stop Device: no
Design as Reversing Switch: no
Number of Switches: 1
Max. Rated Operating Voltage Ue for AC: 690 V
Rated Operating Voltage: 220..690 V
Rated Continuous Current Iu: 800 A
Rated Continuous Current at AC-23, 400 V: 800 A
Rated Short-Time Current Strength Icw: 25 kA
Conditional Rated Short-Circuit Current Iq: 47 kA
Number of Poles: 3
Number of Auxiliary Contacts as Changeover: 5
Motor Drive Optional: no
Integrated Motor Drive: yes
Voltage Release Optional: yes
Device Type: Built-in Device
Plug-in Technology
Suitable for Floor Mounting: no
Suitable for Front Mounting 4-Hole: yes
Suitable for Central Front Mounting: no
Suitable for Distribution Panel Installation: yes
Suitable for Intermediate Installation: no
Color of Actuating Element: black
Design of Actuating Element: Knob
Lockable: yes
Connection Type Main Circuit: Screw Connection
Protection Class (IP), front side: IP40

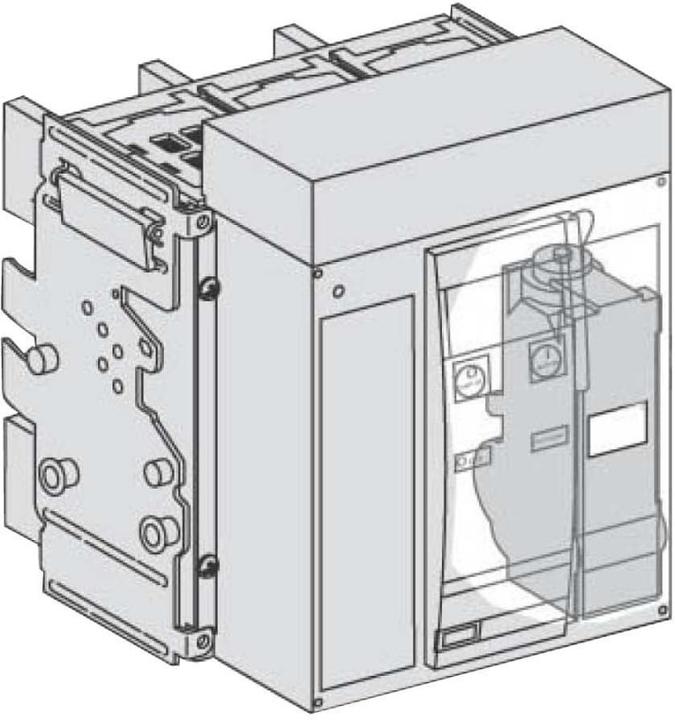

The Compact NS800NA is a 3-pole load break switch. It is used for controlling and disconnecting circuits. This device is designed for plug-in technology and is electrically operated by a motor mechanism. The operating current is 800A (AC23A) and the operating voltage is 690V 50/60Hz. In this basic version, the front and rear power connections are not included. The dimensions are 327mm (width), 210mm (height), and 147mm (depth). This device complies with the IEC 60947-3 standard. EAN: 3303430334521.
