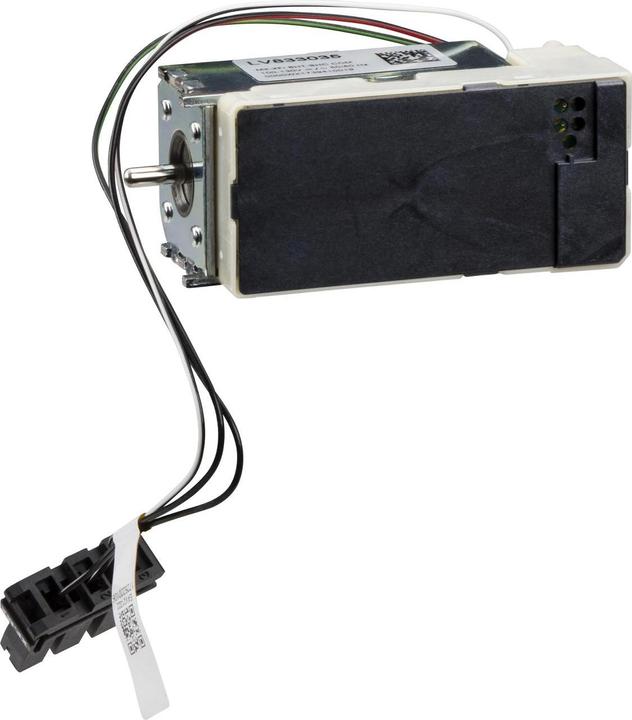

Schneider Electric Disconnect Coil LV833035SP

Manufacturer: Schneider Electric
Designation: Disconnect Coil MXdiag 100/130VAC/DC
Type: LV833035SP
Rated Control Supply Voltage Us at AC 50 Hz: 100..130 V
Rated Control Supply Voltage Us at AC 60 Hz: 100..130 V
Rated Control Supply Voltage Us at DC: 100..130 V
Voltage Type for Actuation: AC/DC
Type of Electrical Connection: Flat Plug Connection
Suitable for Circuit Breakers: yes
Suitable for Load Switches: yes
Suitable for Motor Protection Circuit Breakers: no
Suitable for Overload Relays: no

This disconnect coil is designed for the immediate remote tripping of the MasterPact MTZ circuit breaker. In conjunction with an XF closing coil and an MCH motor drive, the MasterPact can be controlled remotely. The tripping occurs without delay via Modbus communication. The tripping coil includes a diagnostic function that can be accessed through Modbus communication. Immediate voltage tripping coil MX/XF diag&com 100/130V AC/DC for MasterPact MTZ spare part. This tripping coil can be ordered separately as a spare part for the XF closing coil and MX disconnect coil. EAN: 3606480932465.
