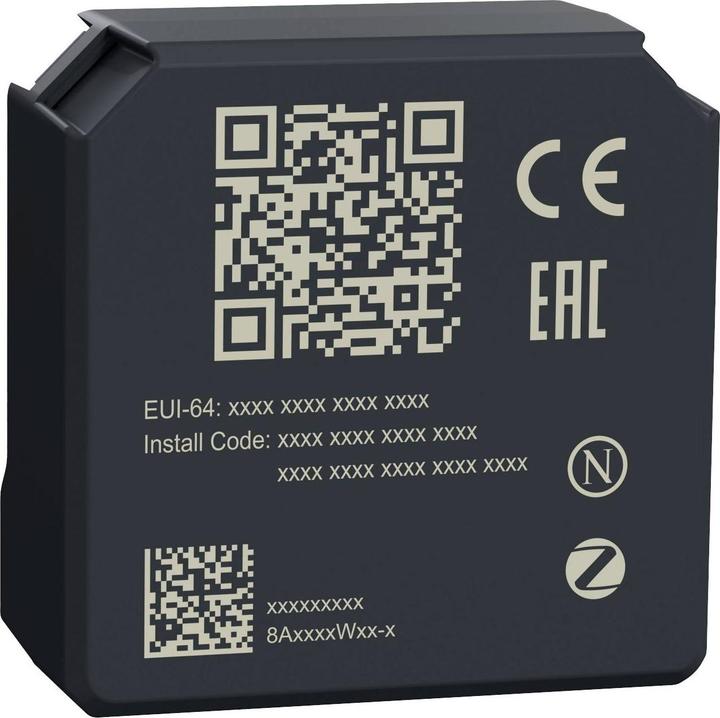

Schneider Electric Wiser Switch Actuator 1-Channel UP CCT5011-0002W

Manufacturer: Schneider Electric
Designation: Wiser Switch Actuator 1-Channel UP
Type: CCT5011-0002W
KNX Bus System: No
KNX Radio Bus System: No
Radio Bus System: Yes
LON Bus System: No
Powernet Bus System: No
Other Bus Systems: Zigbee
Bidirectional Radio: Yes
Mounting Type: Flush-mounted
Local/Manual Operation: Yes
With LED Display: Yes
Max. Switching Power: 2200 W
Max. Switching Power for LED: 200 W
Output Power: 2200 W
Suitable for C-Load: No
Max. Number of Switching Outputs: 1
Max. Switching Current: 10 A
Rated Current: 10 A
Rated Operating Voltage: 230 V
Connectable to Different Phases: No
Power Consumption: 0.4 W
With Bus Coupling: Yes
Bus Module Removable: No
Min. Depth of Device Box: 22 mm
Modular Expansion Option: No
Protection Class (IP): IP20

The Wiser flush-mounted switch actuator controls resistive, inductive, or capacitive loads in a Wiser home automation system (Zigbee). It features a potential-free relay. Up to 64 devices, including a hub, can be connected through a system. Further details are available in the online documentation. The dimensions are 43 x 43 x 22 mm.

It offers a modular smart home connection via the Wiser system, local and remote app control, schedules, moments (scenes), and automations through the Wiser Home App. It supports Zigbee 3.0 (factory setting) and Bluetooth. Capacitive load up to 10 A. A neutral wire is required, and the connection is made via screw terminals.

It is the successor to the MEG5011-0001. System configuration is done via the Wiser Home App (online and offline). Additional installation support is provided through the eSetup App for qualified electricians.
EAN: 3606481048172.
