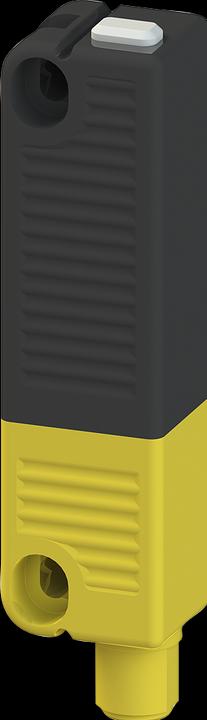

Siemens 3SE6315-1BB01-1AP0 Safety switch RFID rectangular
M12Product details
Contactless safety switch RFID rectangular 106 mm x 25 mm family-coded, with M12 8-pole connector and magnetic latching 18 N. Delivery condition: ready for operation. Actuator with magnetic latching 18 N must be ordered separately: 3SE6310-1BC01 RFID safety switch SIRIUS 3SE63 for space-saving, tamper-proof protection grid, flap, or safety door monitoring in high protection class IP69K. The contactless devices are suitable for use in extreme environmental conditions due to the high protection class IP69K. They offer extensive diagnostic options via LED as well as better mounting tolerance of the safety door compared to mechanical switches. The switches are suitable for the highest safety requirements according to PL e or SIL 3. All common safety evaluation devices can be connected. The RFID safety switches are family-coded (ready for operation and interchangeable) or individually coded (can be learned multiple times or once). Variants with magnetic latching and matching actuators (standard or with magnetic latching) are available. Accessories such as cover caps, spacers, and connection cables in various lengths are also available.
Nominal current | 0.50 A |
Nominal voltage | 4 V |
Number of outlets | 1 x |
Protection type (IP code) | IP69K |
Item number | 36953324 |
Manufacturer | Siemens |
Category | Mobile power distributors |
Manufacturer no. | 3SE63151BB011AP0 |
Release date | 6.7.2023 |
Material group | Plastic |
Material | Plastic |
Nominal current | 0.50 A |
Nominal voltage | 4 V |
Plug type | M12 |
Number of outlets | 1 x |
Area of use | Inside |
Actuator Type | Magnetic detent |
input voltage | 20 V, 4 V |
Protection type (IP code) | IP69K |
Country of origin | Germany |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Scope of delivery | Safety switch RFID rectangular 106 mm x 25 mm family-coded, with M12 plug 8-pin and magnetic catch 18 N |
Width | 25 mm |
Length | 106 mm |
Height | 22 mm |
Product Safety |
