Siemens Digital Industries SITOP Power Supply 6EP3433-7SB00-0AX0

Manufacturer: Siemens Digital Industries
Description: SITOP Power Supply
Output: DC 24V/5A
Type: 6EP3433-7SB00-0AX0
Voltage type of supply voltage: AC/DC
1st output voltage: 24 V
Max. output current 1: 5 A
Adjustable output voltage: yes
Nominal output voltage 1: 24 V
Nominal output current 1: 5 A
Short-circuit proof: yes
Rated supply voltage at AC 50 Hz: 323..576 V
Rated supply voltage at AC 60 Hz: 323..576 V
Rated supply voltage at DC: 450..600 V
Regulated output voltage: yes
Power output: 120 W
Stabilized: yes
Type of electrical connection: Spring clamp connection
DIN rail mounting possible: yes
Wall mounting possible: no
Suitable for rack mounting: yes
Installation width: 35 mm
Installation height: 225 mm
Direct mounting possible: no
Width: 35 mm
Height: 135 mm
Depth: 125 mm
Protection class (IP): IP20

Siemens Digital Industries SITOP Power Supply 6EP3433-7SB00-0AX0: additional details

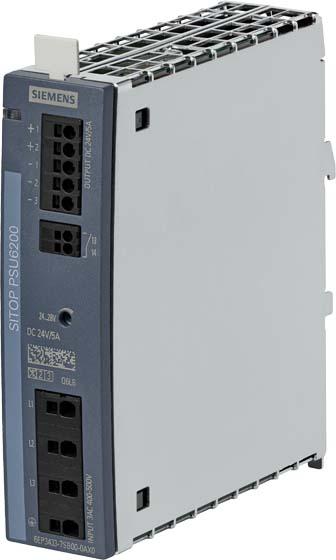

SITOP PSU6200 24 V/5 A regulated power supply
Input: AC 400 - 500 V
Output: DC 24 V/5 A

The 3-phase SITOP PSU6200 are standard power supplies for high technical requirements. They are suitable for a variety of applications, especially in industrial environments such as series machine construction. The high-quality design of the PSU6200 family combined with push-in terminals ensures effective wiring. The long lifespan and absolute reliability make the modules of this product family versatile. The high efficiency across the entire load range and minimal no-load losses guarantee a resource-saving energy consumption. To further increase the availability of 24 V, the SITOP PSU6200 power supplies can be combined with DC UPS, redundancy, and selectivity modules. No matter the industry, no matter the requirement - Siemens offers reliable and efficient power supplies for every system.
EAN: 4025515155300.
