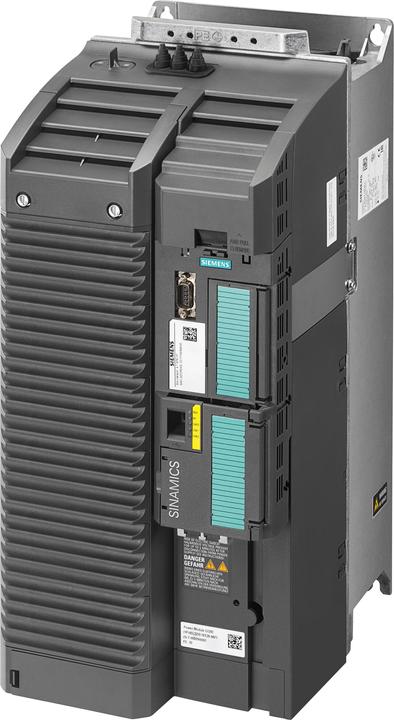

SINAMICS G120C rated power: 30.0 kW with 150% overload for 3 seconds. 3AC 380-480 V +10/-20% 47-63 Hz unfiltered. I/O interface: 6 DI, 2 DO, 1 AI, 1 AO. Integrated Safe Torque Off. Integrated fieldbus: PROFINET-PN. Protection class IP20/UL Open Type. Size: FSD 472 x 200 x 237 (HxWxD).

The SINAMICS G120C is a compact and versatile frequency converter with optimal functionality for various application requirements, such as for conveyors, mixers, pumps, fans, and compressors. The already integrated certified safety function Safe Torque Off (STO) eliminates the need for additional external components.

Operation/commissioning is quick and easy via PC using USB or through a Basic Operator Panel or Intelligent Operator Panel. The networking of the drives is possible via standard fieldbus systems (PROFINET, PROFIBUS), and there is a card slot for cloning parameter sets for intuitive series commissioning.

To enhance energy efficiency, the converter is equipped with precise, energy-optimized vector control SLVC and features automatic flow reduction. The SINAMICS G120C covers the three-phase voltage range from 380 V to 480 V and is available in seven sizes with a power range from 0.55 kW to 132 kW.

The frequency converter can be individually adapted to the user's requirements through various options such as connection cables, line filters, braking resistors, line chokes, and other accessories. The variable speed devices are an integral part of Totally Integrated Automation (TIA) and work optimally with SIMATIC controllers. SINAMICS - simply my drive.
