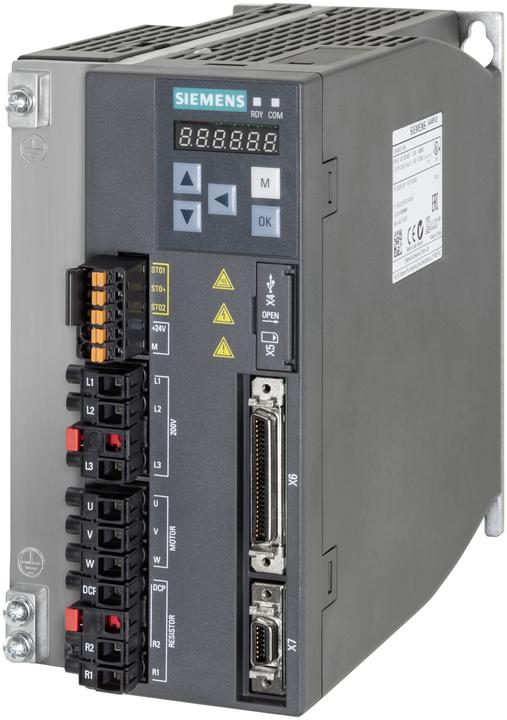

Sinamics V90

Input voltage: 200-240 V 3-Phase - 15 %/+ 10 % 12.0 A 45-66 Hz
Output voltage: 0 - Input 11.6 A 0-330 Hz
Motor: 2 kW
Protection class: IP20
Size D, 95x170x195 (WxHxD)

The Sinamics V90 servo drive is a performance-optimized and easy-to-use servo drive system for a wide range of motion control tasks, focusing on dynamic movement and processing. The servo drive is suitable for connecting the Simotics S-1FL6 servo motor, together forming a cost-effective servo drive system. This system is characterized by reliable operation, optimized performance, and ease of handling. When combined with the Simatic Controller, it creates a powerful team in the TIA Portal.

Depending on the version, the free commissioning tool Sinamics V-Assistant can be downloaded for quick and easy startup. The servo drive is suitable for operation on single-phase and three-phase networks and covers a power range from 0.1 kW to 2.0 kW and a voltage range from 200 V to 240 V with four sizes. The system can be easily integrated via PTI, PROFINET, USS, and Modbus RTU.

The Sinamics V90 servo drive can be customized to meet the user's requirements through various options such as connection cables, line filters, connectors, and additional accessories. Sinamics - simply my drive.
