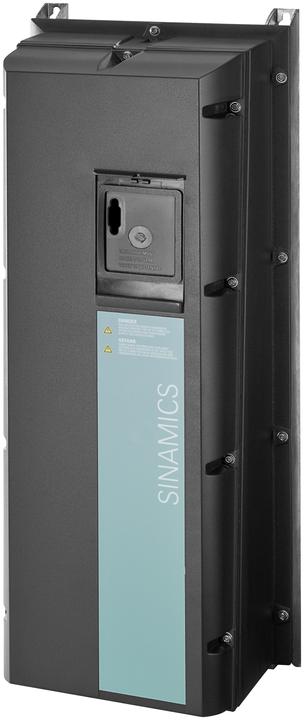

Sinamics G120P Power Module PM230 with integrated Class B filter, protection class IP55/UL Type 12, 3AC380-480V+10/-10%, 47-63Hz. Power at low overload: 18.5 kW at 110% for 60 seconds, 100% for 240 seconds. Ambient temperature: 0 to +40°C (LO), dimensions: 640 x 320 x 329 mm (HxWxD). FSD without Control Unit and operating unit, approved for CU230P-2 from firmware version V4.3.2.

The Sinamics power module is the specialist for building technology for the Sinamics G120P frequency converter. In combination with the appropriate control unit CU230P-2 and an operating panel (Intelligent Operator Panel or Basic Operator Panel) or optionally a blank cover, the functional Sinamics G120P frequency converter is created.

Due to its high protection class, it can be used in harsh environments, for example, at ambient temperatures of up to 60 degrees. The PM230 with protection class IP55 generates only low network feedback without additional measures and reactive power losses, and ensures self-resetting of faults after a power failure. In addition to the energy benefits, it also protects the environment.

The power module PM230 with protection class IP55 is available for wall mounting outside the control cabinet, ranging from 0.37 kW to 90 kW. The sizes FSA to FSF of the power module PM230 with protection class IP55 are available with integrated Class A network filter for installations according to category C2 and with integrated Class B network filter according to category C1 in accordance with EN 61800-3.

Standard accessories included in the delivery are: shield plates and shield connection sets for EMC-compliant connection of power and control cables, as well as for sizes FSA to FSC connection plugs for mains and motor outputs. Sinamics - simply my drive.
