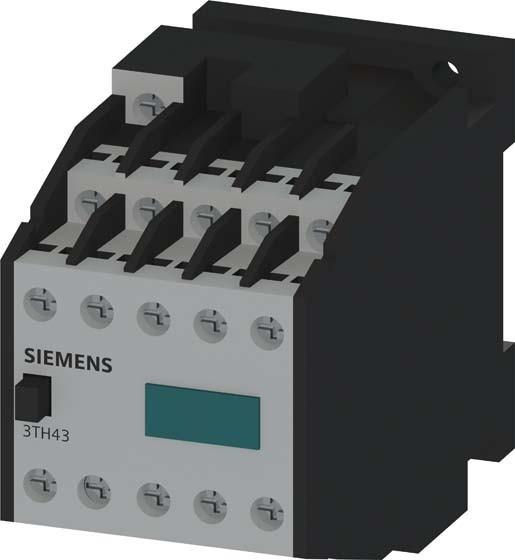

Siemens Digital Industry Auxiliary Relay 3TH4382-0AB0

Manufacturer: Siemens Digital Industry
Description: Auxiliary Relay 82E, 8NO+2NC, 24VAC
Type: 3TH4382-0AB0
Rated control supply voltage Us at AC 50 Hz: 24 V
Rated control supply voltage Us at AC 60 Hz: 29 V
Rated control supply voltage Us at DC: 0 V
Type of voltage for actuation: AC
Rated operational current Ie, 400 V: 6 A
Connection type for auxiliary circuit: Screw connection
Interface: no
Number of auxiliary contacts as normally open: 2
Number of auxiliary contacts as normally closed: 8
With LED indication: no
Suitable for manual operation: no

Further details: Auxiliary relay, 82E, DIN EN 50011, 8 NO + 2 NC, screw connection, AC actuation, AC 24V 50Hz/AC 29V 60Hz. The 3TH4 auxiliary relays are used for switching control signals in the control circuit. The 3TH4 auxiliary relays have standardized connection designations and a reliable connection technology. Through output multiplication, simultaneous switching of up to 10 auxiliary circuits is possible. The contacts are designed with forced guidance for safety applications and are also available as SUVA variants. The devices are climate-resistant, have a high contact reliability, and are suitable for worldwide use due to corresponding approvals (e.g., IEC and UL/CSA). The 3TH4 auxiliary relays are available in AC or DC actuation in various versions with 8 or 10 poles. Accessories include surge protectors, delays, and coupling elements. EAN: 4011209049574.
