Siemens Base unit
M12Product details

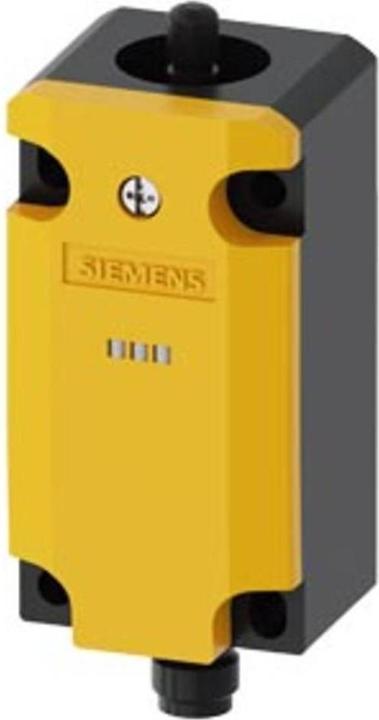

Basic switch without drive head from metal housing, integrated according to EN 50041 ASIsafe. AS-i Status: 1:F-IN1, 2:F-IN2, 3:AS-i/FAULT. Jumping switch elements 2Ö/1S with M12 connector 4-pole, channel 1 to Ö, channel 2 to Ö. Mechanical safety switches SIRIUS 3SF11 for position monitoring of movable protective devices with direct connection to the AS-Interface bus system. The mechanical safety switches are compact due to integrated ASIsafe electronics, which require low power consumption. 3D-coded actuators ensure high protection against manipulation. LEDs indicate the current status of the device. The switches are suitable for the highest safety requirements according to PL e or SIL 3. Various housing sizes in plastic or metal are available. Additionally, variants with separate actuators, with locking, or as safety hinge switches are offered. A series with a high protection rating of IP69K completes the portfolio. Depending on the model, accessories such as drive heads, separate actuators, connectors, and other mounting and connection accessories are available. Safety is a SIRIUS business.
Nominal voltage | 30 V |
Number of outlets | 2 x |
Protection type (IP code) | IP66, IP67 |
Item number | 34806153 |
Manufacturer | Siemens |
Category | Mobile power distributors |
Manufacturer no. | 3SF11141LA001BA1 |
Release date | 17.5.2023 |
Material group | Metal |
Material | Metal housing |
Nominal voltage | 30 V |
Plug type | M12 |
Number of outlets | 2 x |
Area of use | Inside |
Contact Configuration | 2 openers, 1 closer |
Actuator Type | Roller plunger straight |
input voltage | 30 V |
Protection type (IP code) | IP66, IP67 |
Country of origin | Germany |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Scope of delivery | 2:F-IN2 3:AS-i/FAULT snap-action switching elements 2Ö/1S with M12 plug 4-pin channel 1 to Ö, Basic switch without actuator head Metal housing, Channel 2 to Ö, to EN 50041 ASIsafe integrated AS-i status: 1:F-IN1 |
Width | 40 mm |
Length | 99.70 mm |
Height | 37.30 mm |
