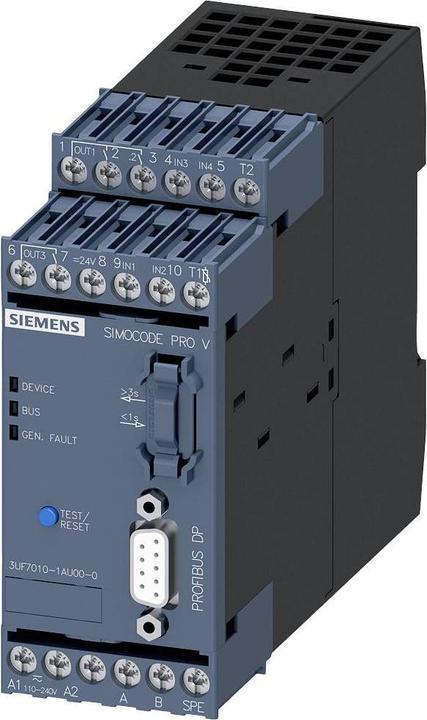

Basic device SIMOCODE pro V PB, PROFIBUS DP interface 12 MBit/s, RS-485, 4E/3A freely parameterizable, supply voltage: 110...240 V AC/DC, input for thermistor connection, monostable relay outputs, with coated circuit boards, expandable with SIMOCODE pro extension modules. The variable and intelligent motor management system offers the possibility to implement many control functions, e.g. for reversing switches or valve control, and operates independently of the automation system. In conjunction with various extension modules, it provides a comprehensive framework of inputs and outputs, voltage and power measurement, fail-safe motor shutdown, accurate earth fault detection via the differential current transformer 3UL23, analog value monitoring, and temperature measurement. Depending on the version, various communication connections such as PROFIBUS, PROFINET, OPC UA, Modbus RTU, or EtherNet/IP are possible. The system delivers detailed operational, service, and diagnostic data – anytime and anywhere. Worldwide approvals (e.g. IEC and UL/CSA) are also available for explosion-hazardous applications (ATEX or IEC Ex). Support for IE3/IE4 motors is provided. The SIMOCODE ES (TIA Portal) software is available for project planning, commissioning, operation, and diagnostics of SIMOCODE pro. With the SIMOCODE pro block library for SIMATIC PCS 7, SIMOCODE pro can be easily integrated into the SIMATIC PCS 7 process control system. The SIMOCODE pro V basic devices are available with DC 24 V or AC/DC 110-240 V control supply voltage. For operation, at least one current/voltage measurement module and a suitable connection cable 3UF793 are required. These optional control modules with and without display, as well as various extension modules, are available separately. A step into the future with SIMOCODE pro.
