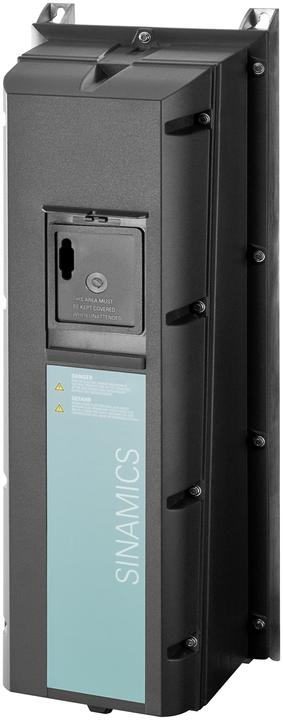

SINAMICS G120P Power Module PM230 with integrated Class A filter, protection class IP55. 3AC 380-480V ±10%, 47-63Hz. Power at low overload: 7.5 kW at 150% for 3 seconds, 110% for 57 seconds, 100% for 240 seconds. Ambient temperature from -10 to +40 °C. Dimensions: 540 x 180 x 249 mm (HxWxD). FSB without Control Unit and operating unit approved for CU230P-2 from firmware version V4.3.2.

The SINAMICS power module is the specialist for building technology for the SINAMICS G120P frequency converter. In combination with the appropriate control unit CU230P-2 and an operating panel (Intelligent Operator Panel or Basic Operator Panel) or optionally a blind cover, the functional SINAMICS G120P frequency converter is created.

Due to its high protection class, it can be used in harsh environments, for example at ambient temperatures of up to 60 degrees. The PM230 with protection class IP55 generates only low network disturbances without additional measures as well as apparent power losses and ensures automatic acknowledgment of faults after a power failure. In addition to the energy benefits, the environment is also preserved.

The PM230 power module with protection class IP55 is available for wall mounting outside the control cabinet from 0.37 kW to 90 kW. The sizes FSA to FSF of the PM230 power module with protection class IP55 are available with integrated Class A network filter for installations according to category C2 and with integrated Class B network filter for category C1 according to EN 61800-3.

The following accessories are included as standard: Shielding plates and shielding connection sets for EMC-compliant connection of power and control cables, as well as for sizes FSA to FSC connection plugs for network and motor outputs. SINAMICS - simply my drive.
