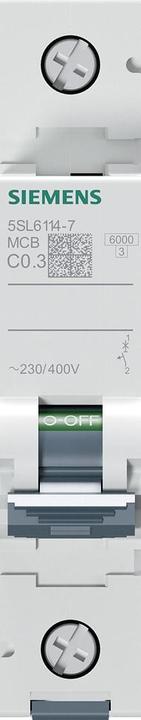

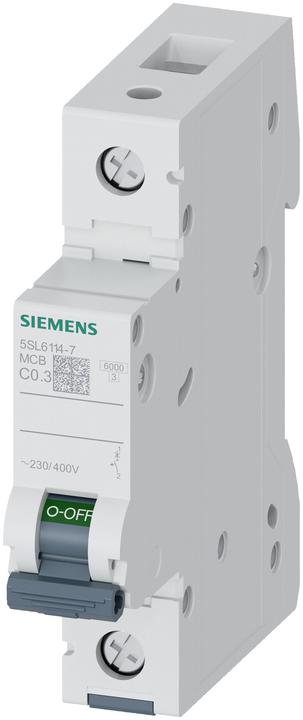

Siemens Dig.Industr. Circuit Breaker 5SL6114-7

Manufacturer: Siemens Dig.Industr.
Designation: Circuit Breaker C 0.3 A 1-pole 6 kA
Type: 5SL6114-7
Installation Depth: 70 mm
Tripping Characteristic: C
Number of Poles (total): 1
Number of Protected Poles: 1
Rated Current: 0.3 A
Rated Voltage: 400 V
Rated Short-Circuit Capacity Icn according to EN 60898 at 230 V: 6 kA
Voltage Type: AC
Rated Short-Circuit Capacity Icn according to EN 60898 at 400 V: 6 kA
Rated Short-Circuit Capacity Icu according to IEC 60947-2 at 230 V: 6 kA
Rated Short-Circuit Capacity Icu according to IEC 60947-2 at 400 V: 6 kA
Frequency: 50 Hz
Energy Limitation Class: 3
Flush Mounting: no
Switched Neutral Conductor: no
Overvoltage Category: 3
Pollution Degree: 2
Additional Devices Possible: yes
Width in Division Units: 1
Protection Class (IP): IP20
Ambient Temperature during Operation: -25 to 45 °C
Connectable Conductor Cross-Section Multi-stranded: 0.75 to 25 mm²
Connectable Conductor Cross-Section Solid: 0.75 to 25 mm²
Explosion-Proof: no

Siemens Dig.Industr. Circuit Breaker 5SL6114-7: additional details
Circuit breaker 230/400 V 6 kA, 1-pole, C, 0.3 A
SENTRON 5SL circuit breakers provide safe short-circuit and overload protection for standard applications in residential and commercial buildings. Tool-free installation and removal of the device. Easy wiring of the supply through the rear-mounted busbar. The 5SL circuit breakers are available in 1-, 2-, 3-, 4-, as well as 1+N and 3+N pole versions, along with other special types. A wide range of accessories, such as auxiliary switches, allows for versatile expansion of functions. Simply safe with SENTRON protection devices.
