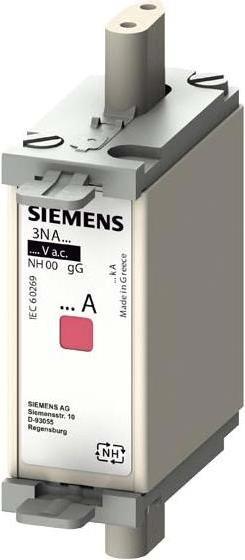

Siemens Industrial Sector NH Fuse Insert 3NA6830

Manufacturer: Siemens Industrial Sector
Designation: NH Fuse Insert G000 100A 500AC
Type: 3NA6830
Fuse size according to IEC 60269: NH000
Voltage type: AC/DC
Rated current: 100 A
Rated breaking capacity: 120 kA
Operating class: gL/gG (Full-range line protection/Full-range device protection)
Indicator type: Combination indicator
Insulated metal grip handles (IMGL): yes

Additional details:
NH fuse insert, NH000, In: 100 A, gG, Un AC: 500 V, Un DC: 250 V, combination indicator, insulated grip handles.

The NH fuse system 3NA, 3ND from Siemens is an essential component of the SENTRON protection devices for electrical installations, providing effective protection for people, devices, and systems through safe disconnection in overload and short-circuit situations. Compared to circuit breakers, higher short-circuit currents can be achieved with better current limitation.

The NH fuse system is characterized by:
1. Combination indicators signal the disconnection of the fuse with a clear color change from red to white.
2. Increased safety when changing due to insulated grip handles.
3. High selectivity at low costs.
4. Long-term and safe operation due to silver-plated contact blades.
5. Fuse inserts available from 2 A to 1250 A and in sizes 000, 00, 0, 1, 2, 3, 4, and 4a.

Siemens offers a comprehensive portfolio of protection, switching, measurement, and monitoring devices, installation distributors, as well as switches and sockets for a safe and efficient electrical infrastructure in buildings and industry.

EAN: 4001869071299.
