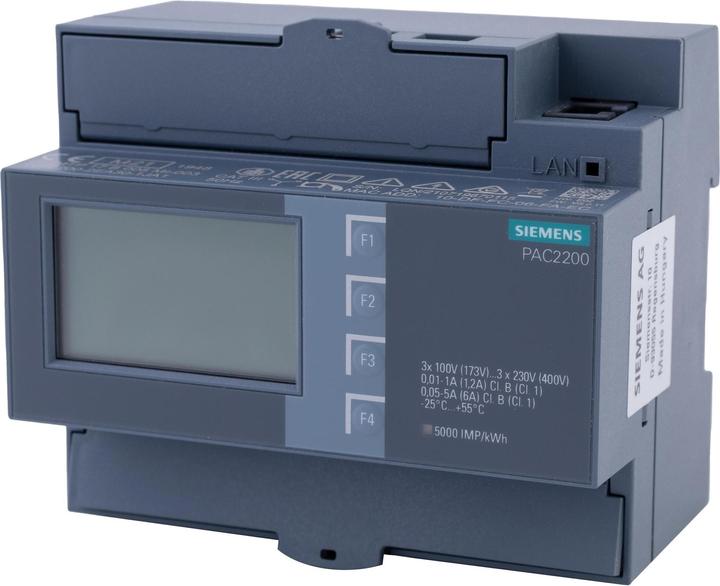

The Siemens SENTRON MID converter terminal measuring device 7KM PAC2200 is a highly advanced measuring instrument designed for the precise capture of energy consumption in single-phase and three-phase networks. This device is ideally suited for use in industrial facilities, commercial buildings, offices, and multi-family homes, particularly for billing purposes. With a rated voltage of 400 V (L-L) and 230 V (L-N) as well as a maximum current of 5 A, the 7KM PAC2200 provides reliable and reproducible measurements of apparent, active, and reactive power. The integrated digital display allows for easy reading of measurement values. Thanks to its various communication interfaces, including Modbus TCP, PROFINET, Modbus RTU, and M-Bus, the device can be easily integrated into existing automation and energy management systems. The MID certification ensures the accuracy and reliability of the measurements, making it a valuable component for monitoring and analyzing energy consumption.
measurement module | Amp, Kilowatt hours, Volts, Watt |
Maximum current | 5 A |
Energy meter type | Energy meter |
Nominal voltage | 3 V |
Mounting type | Top-hat rail |
Item number | 10333320 |
Manufacturer | Siemens |
Category | Energy monitors |
Manufacturer no. | 7KM2200-2EA30-1JA1 |
Release date | 6.10.2021 |
External links |
Colour | Grey |
Exact colour description | Grey |
Energy meter type | Energy meter |
Functionalities | Knife |
Mounting type | Top-hat rail |
Mounting type | Screw fastening |
measurement module | Amp, Kilowatt hours, Volts, Watt |
Maximum current | 5 A |
Nominal voltage | 3 V |
Display type | Digital |
max. measuring range power | 100 W |
Tariff execution | Second tariff |
Pulse output | Electrical |
Polar type | Four-wire, Three-wire |
Protection type (IP code) | IP40 |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Height | 97 mm |
Length | 120 mm |
Width | 108 mm |
Weight | 417 g |
Length | 14 cm |
Width | 13 cm |
Height | 12 cm |
Weight | 410 g |
