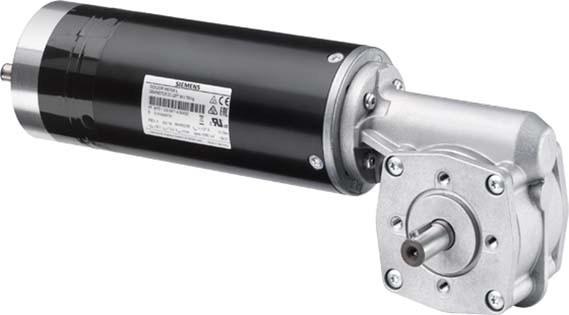

Siemens Dig.Industr. SIDOOR 6FB11030AT143MG2 Manufacturer :Siemens Dig.Industr. Designation :SIDOOR MDG5 L Type :6FB11030AT143MG2 Pinion position :left Max. speed :0.5 m/s Gear ratio :15 Rated operating current :7.5 A Length :348 mm Height :124 mm Diameter :80 mm Speed :0,5 m/s Gear ratio :15 Rated operating current :7,5 A Length :348 mm Height :124 mm Diameter :80 mm Siemens Dig.Industr. SIDOOR 6FB11030AT143MG2: more details SIDOOR MDG5 L geared motor, shaft left with keyway and feather key A5x5 according to DIN 6885, max. 700kg mass to be moved, IP56, 2x M12 for separate motor connection cable, 30 VDC, -20 to +50 degrees Celsius The SIDOOR Advanced drives convince by the flexible choice of the output solution, high degrees of protection (IP56 for motor and gearbox) and an optimised cable solution. Thanks to the delivery of the output shaft of the gearbox with groove and feather key (without belt pulley), transmission types such as toothed rack or chain can also be realised as an alternative to the toothed belt solution. A separate motor connection line is available. This allows the distance between the door control unit and the geared motor to be installed according to the application. The SIDOOR Advanced drives are divided into the line classes MDG3 up to 180 kg, MDG4 up to 400 kg and MDG5 up to 700 kg. In addition, there are the Basic drives SIDOOR M3/M4/M5. Due to the wide range of geared motors, a left and right geared motor variant is always available. For doors with toothed belt transmission, all the necessary mechanical components such as a deflection device, mounting bracket, door driver and toothed belt are available as accessories to match. A belt pulley or toothed wheel, the diameter of which may vary between 28 mm and 122 mm depending on requirements, can be manufactured to suit the application itself and mounted on the gear shaft. For a standard solution with toothed belt transmission, the product range includes a suitable belt wheel. Identical successor for 6FB1103-0AT14-3MG1 SIDOOR MDG700 NMS L. , EAN: 4047618105921.
