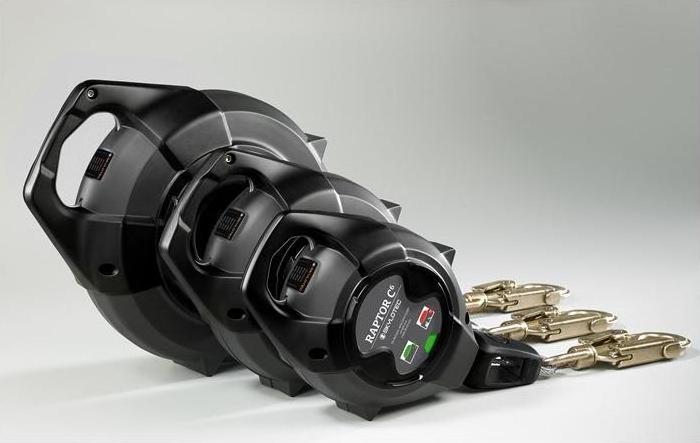

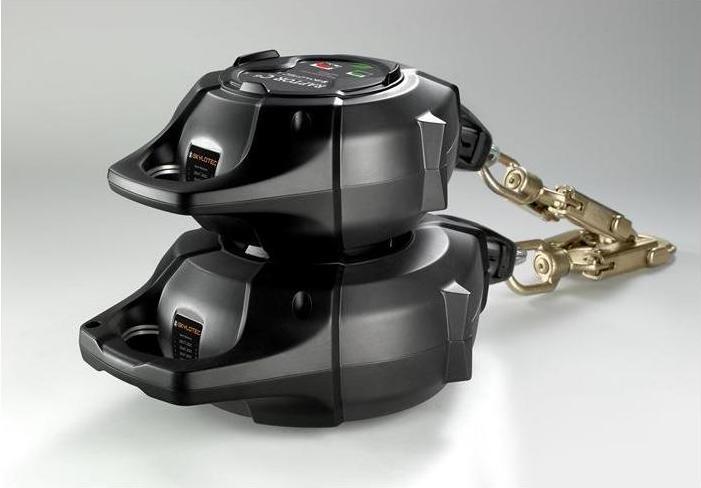

Skylotec RAPTOR W EN 360 retractable type fall arrester Weight approx. 3.2 kg Rope length 6 m for vertical
Height safety device, 140 kgOnly 1 piece in stock at supplier
Product details
EN 360:2002 with self-retractable textile tape and automatic locking function enables safe work at height and depth. Approved for user weights of 40-140 kg. Modular design: all components can be individually replaced, reducing maintenance times and costs. An energy-absorbing inlet damper protects the device housing and the internal mechanics, thereby reducing continuous impacts and preventing hand injuries during rope retraction. Features two visible fall indicators that show the device's functionality from the outside. A red warning indicator informs the user when the device needs to be inspected, protecting against the use of a non-functional product and saving time during the annual mandatory inspection. These products are tested and approved for vertical and horizontal applications with expected stress from edge falls.
Additional technical specifications:
- Opening width: 20 mm
- Application: for vertical applications
- Thickness approx.: 245 mm
- Width approx.: 172 mm
- Rope diameter: webbing 25 mm
- Maximum allowable weight: 140 kg
- Mandatory testing: yes
- Adapter: No
- Height: 245 mm
- Back loop: No
- Retaining loop: No
- 100 kg plus: Yes
- Chest loop: No
- Rescue loop: No
- Seat belt loop: No
- Retention loop: No
- Climbing protection loop: No
- Width: 172 mm
- Carabiner on rope: FS 51 WIB IND ANSI
- Rescue Loop: No
- Length: 108 mm
- Edge suitable: No
- Maximum allowable weight: 140 kg
- Color: black
- Keylock: No
- Flame retardant: No
- Sea water resistant: No
- Waterproof: No
- Fall indicator: Yes
- Tear-resistant: No
- Size: 6 m
- Breathable: No
- Elastic webbing: No
- Abrasion-resistant: No
- Back support: No
- Hole adjustment: No
- Material loop: No
- Click buckles: No
- Tool loop: No
- Lanyard parking rings: No
- For horizontal use: No
- Plastic sliding plate: No.
Material | Aluminium, Plastic, Polyester, Steel |
Load capacity | 140 kg |
Item number | 44903818 |
Manufacturer | Skylotec |
Category | Fall protection |
Manufacturer no. | HSG-040-6 |
Release date | 13.4.2024 |
Colour | Black |
Exact colour description | Black |
Material group | Fabric, Metal, Plastic |
Material | Aluminium, Plastic, Polyester, Steel |
Fall protection type | Height safety device |
Load capacity | 140 kg |
Rope length | 6 m |
Rope diameter | 25 mm |
Material rope | Plastic |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 10.80 cm |
Width | 17.20 cm |
Height | 24.50 cm |
Weight | 3.20 kg |
