Spax Chipboard screws

500 Screws per piece
Price in EUR including VAT, plus shipping
EUR0,06/1pcs.
Delivered between Tue, 3.6. and Thu, 5.6.
Only 3 items in stock at supplier

Length

Diameter

Product details

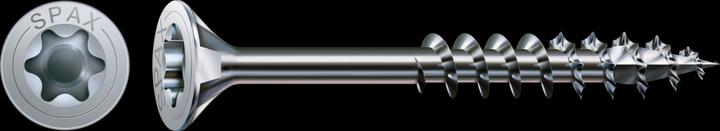

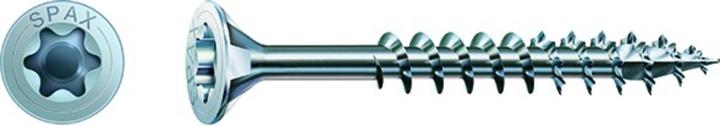

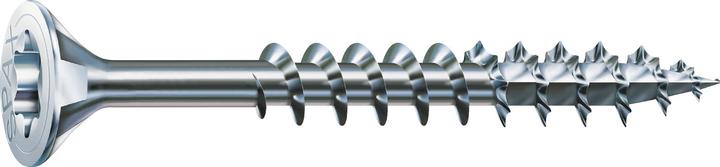

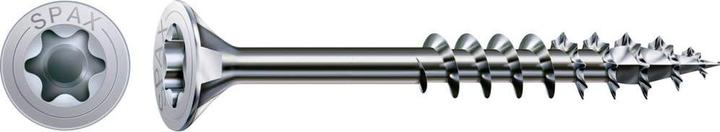

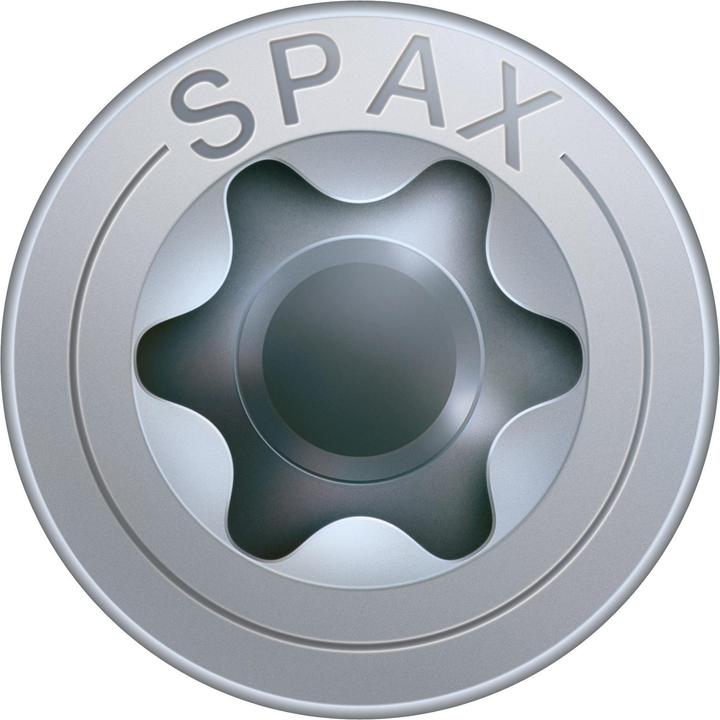

The SPAX typical drive T-STAR plus is a so-called internal hexagon. This shape increases the contact area of our T-STAR plus, allowing the T-STAR plus bits to fit optimally in the screw head. The best possible power transfer from the screwdriver to the screw through T-STAR plus enables efficient work, significantly more so than with any other drives. The countersunk head (or flat countersunk head) carves a recess into the wood with its polygonal underside ("pockets") and can therefore be sunk without additional countersinking of the screw hole. The countersunk head sits flush with the surface. The screws with partial thread are excellent for fastening thin components such as wood-based panels, boards, or floorboards to thicker components like beams or posts. The short thread screws into the thick component, while the unthreaded shank remains in the attachment component. This creates maximum clamping pressure between the two. The unthreaded part should be at least the thickness of the attachment component. The term 4CUT refers to the square shape of the screw tip. These edges displace the wood fibers during insertion and create space for the screw's core diameter. The spreading pressure exerted by the core in the wood is thus reduced, preventing the wood from splitting near the edges. Additionally, the necessary torque of the cordless screwdriver is reduced, as the core of the screw does not have to "squeeze" into the wood. With WIROX, SPAX has developed a coating that is far superior to galvanization in terms of corrosion protection. WIROX does not use chromium (VI), and the screws remain just as durable after years in non-directly weathered outdoor areas, while also being environmentally friendly.

Key specifications

type of screw
Chipboard screw
bolt diameter
5 mm
head shape
Countersunk head
Screw length
45 mm
Version
Unique specimen
Size (D x L)
M5 x 45
Item number
15878429

General information

Manufacturer
Spax
Category
Screws
Manufacturer no.
880910190050045
Release date
24.5.2021
External links

Colour

Colour
Silver
Exact colour description
WIROX

Material

Metal type
Steel
Material group
Metal
Material
Galvanised steel wirox®-coatedSlip-coated
surface finish
Wirox coated

Screw Properties

type of screw
Chipboard screw
Version
Unique specimen
thread type
Partial thread
head shape
Countersunk head
impetus
Torx (TX)
Output size
T20

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery

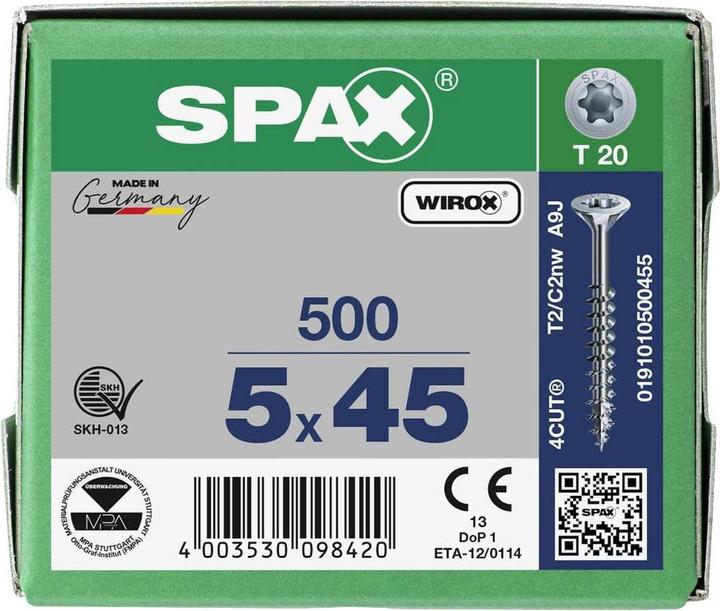

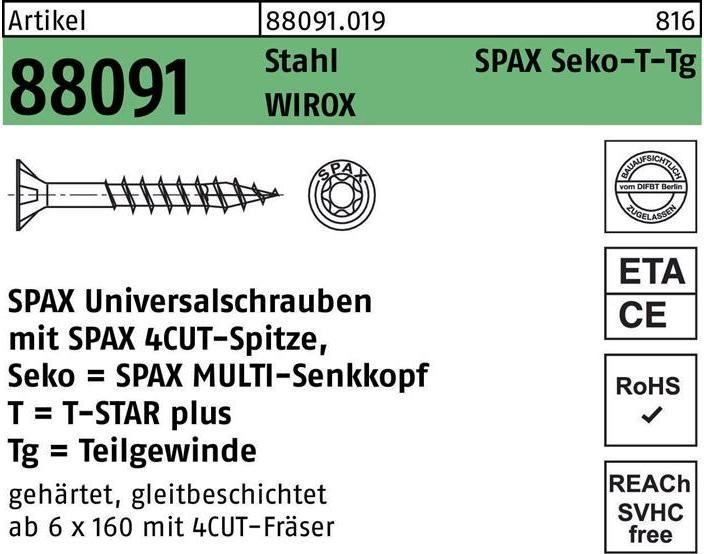

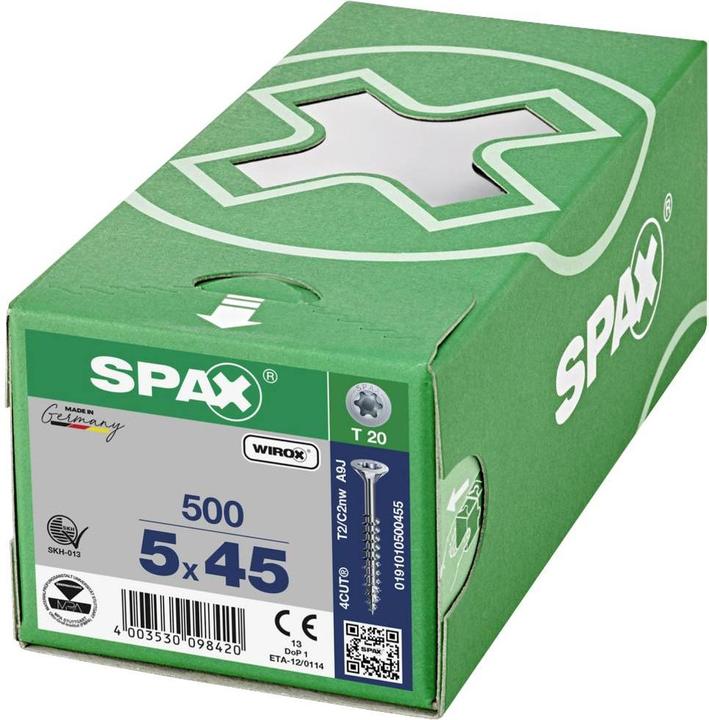

4CUT5 x 45 mmPartial threadSENKKOPFT-STAR plus T20WIROX - 0191010500455
Items per sales unit
500 Screws per piece

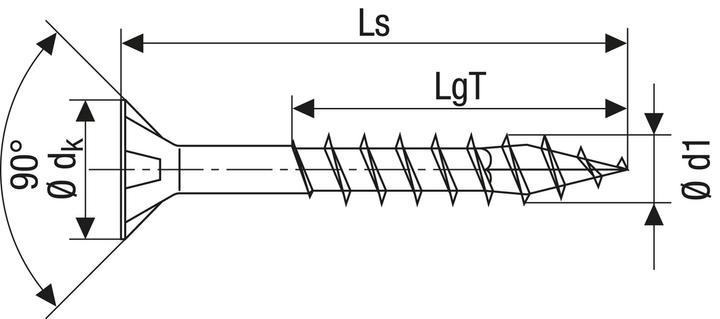

Product dimensions

Size (D x L)
M5 x 45
bolt diameter
5 mm
Screw length
45 mm
thread length
30 mm
