Stahl 8118/131-811
Length2
Product details

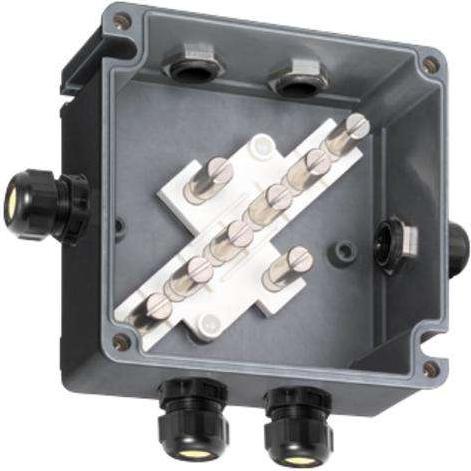

The Ex e junction box of type 8118/131-811 from Stahl is an explosion-proof solution designed for use in hazardous environments. It offers a high operating voltage of up to 750 V and is suitable for connection cross-sections of up to 10 mm². The housing is made of fiberglass-reinforced polyester resin, which is not only robust but also resistant to various environmental influences. With a compact design and dimensions of 145 x 145 x 71 mm, this junction box is ideal for indoor installation. It meets the requirements for gas and dust explosion protection in zones 1, 2, 21, and 22 and is suitable for temperatures ranging from -60 °C to +40 °C. These features make the junction box a reliable choice for demanding applications.
- Explosion-proof according to II 2 G Ex eb IIC T6....T5 Gb and II 2 D Ex tb IIIC T80 °C ....T95 °C Db
- Protection class IP66 for high resistance to dust and water
- Made from fiberglass-reinforced polyester resin for added stability
- Suitable for use in hazardous zones 1, 2, 21, and 22
- Operating temperature range from -60 °C to +40 °C.
Junction box type | Distribution box |
Protection type (IP code) | IP66 |
Height | 145 mm |
Width | 145 mm |
Length | 71 mm |
Item number | 31939607 |
Manufacturer | Stahl |
Category | Junction box |
Manufacturer No. | 133186 |
Release date | 12.10.2022 |
Colour | Grey |
Exact colour description | Dark grey |
Material group | Plastic |
Material | Glass fibre reinforced, Polyester resin |
Junction box type | Distribution box |
mounting style | Finery |
Area of use | Inside |
Protection type (IP code) | IP66 |
Country of origin | Germany |
CO₂ emissions | 1,12 kg |
Climate contribution | EUR 0,12 |
Items per sales unit | 1 pcs. |
Height | 145 mm |
Width | 145 mm |
Length | 71 mm |
Product Safety |
