Stahl Junction box
More than 10 pieces in stock at supplier
Length5
Product details

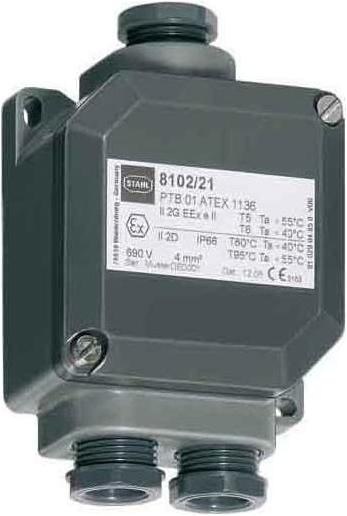

The junction box 132988 Ex-E 8102/21-31 from Stahl is an explosion-proof solution designed for use in hazardous environments. It meets the requirements for zones 1, 2, 21, and 22, providing protection against both gas and dust explosions. With a rated operating voltage of up to 690 V and a maximum conductor cross-section of 4 mm², this junction box is versatile. The housing is made of fiberglass-reinforced polyester resin, known for its robustness and durability. The junction box is suitable for an ambient temperature range of -50 to +55 °C and offers high impact resistance (IK10). It is designed for surface mounting and features multiple entries for flexible installation.
- Explosion-proof for zones 1, 2, 21, and 22
- Made from fiberglass-reinforced polyester resin
- Protection class IP66 for high resistance to dust and water
- Operating temperature range of -50 to +55 °C
- Maximum conductor cross-section of 4 mm² with 5 connection terminals.
Junction box type | Distribution box |
Protection type (IP code) | IP66 |
Width | 71 mm |
Length | 116 mm |
Item number | 20023444 |
Manufacturer | Stahl |
Category | Junction box |
Manufacturer no. | 132988 |
Release date | 16.3.2022 |
External links |
Colour | Grey |
Exact colour description | Dark grey |
Material group | Plastic |
Material | Plastic |
Junction box type | Distribution box |
mounting style | Finery |
Protection type (IP code) | IP66 |
Country of origin | China |
CO₂ emissions | 0,12 kg |
Climate contribution | EUR 0,12 |
Items per sales unit | 1 pcs. |
Width | 71 mm |
Length | 116 mm |
Product Safety |
Length | 15 cm |
Width | 7 cm |
Height | 15 cm |
Weight | 35 g |
