Actuator type: Roller plunger
Contact number and position: 2-pole
Contact configuration: Normally open/normally closed contact
Protection class: IP66
Current max: 10 A
Housing material: Zinc alloy
AC voltage max: 240 V
DC voltage max: 250 V
Series: OsiSense XC
Contact type: Snap action
Connection type: Screw mounting
Length: 64 mm
Width: 63 mm
Operating temperature max: +70 °C

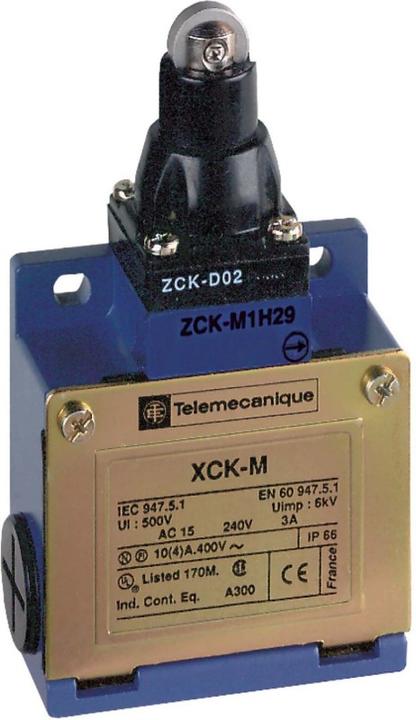

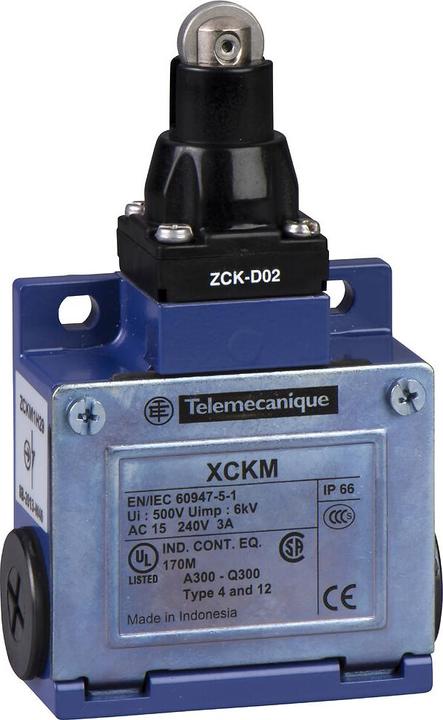

VDE0660, IEC947-5-1, UL, CSA. Limit switch with three cable entries XCK-M. Limit switch of the XCKM series. Contacts: 1 NO (auxiliary) and 1 NC (safety) load: 240 V AC, 3 A IP65 protection.
