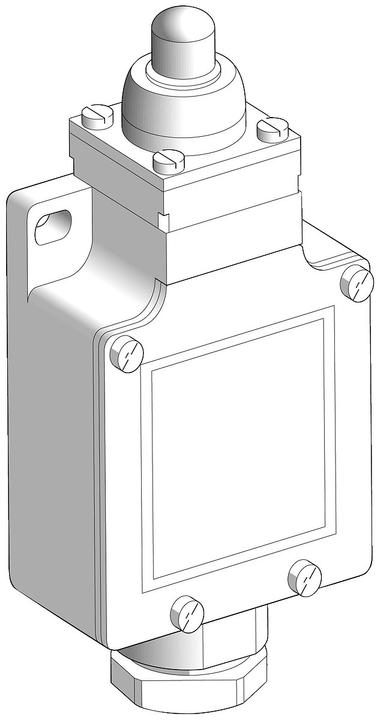

TE Sensors LIMIT SWITCH, XCKL110
Price in EUR including VAT
free shipping
Actuator type: Plunger
Contact number and position: 1-pole changeover contact
Contact configuration: Normally open/normally closed contact
IP protection class: IP66
Current max: 10 A
Housing material: Zinc alloy
AC voltage max: 240V
DC voltage max: 250V
Series: OsiSense XC
Contact type: Snap action
Connection type: Screw connection
Length: 72mm
Width: 52mm
Mechanical life min: 20,000,000 cycles

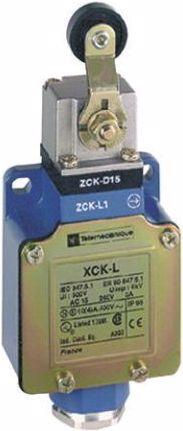

Limit switch XCK L. Limit switch series XCKL. Product range of metal snap-in limit switches. Applications: Production workshops, packaging machines.
Nominal current | 10 A |
Number of outlets | 1 x |
Protection type (IP code) | IP66, IP67 |
Item number | 15801348 |
Manufacturer | TE Sensors |
Category | Mobile power distributors |
Manufacturer no. | XCKL110 |
Release date | 30.4.2021 |
External links |
Material group | Metal |
Material | Metal |
Nominal current | 10 A |
Number of outlets | 1 x |
Area of use | Inside |
Number of poles | 1 x |
Contact Configuration | Normally open/ normally closed |
Actuator Type | Tappet |
Protection type (IP code) | IP66, IP67 |
Country of origin | France |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Scope of delivery | IP66, Position switch w.dome plunger |
Width | 52 mm |
Length | 30 mm |
Height | 72 mm |
Diameter | 30 mm |
