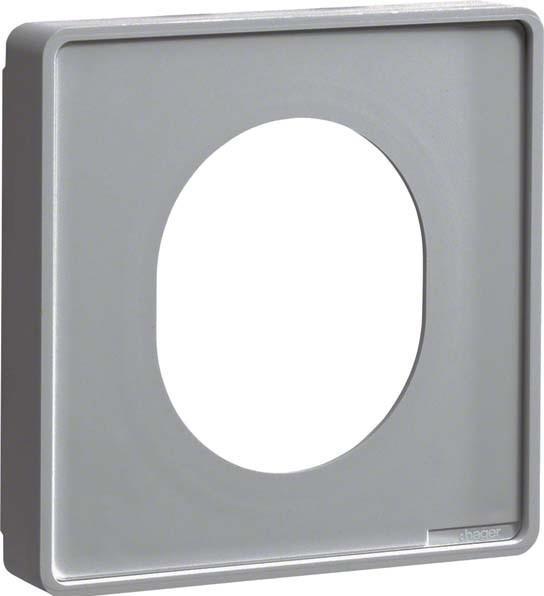

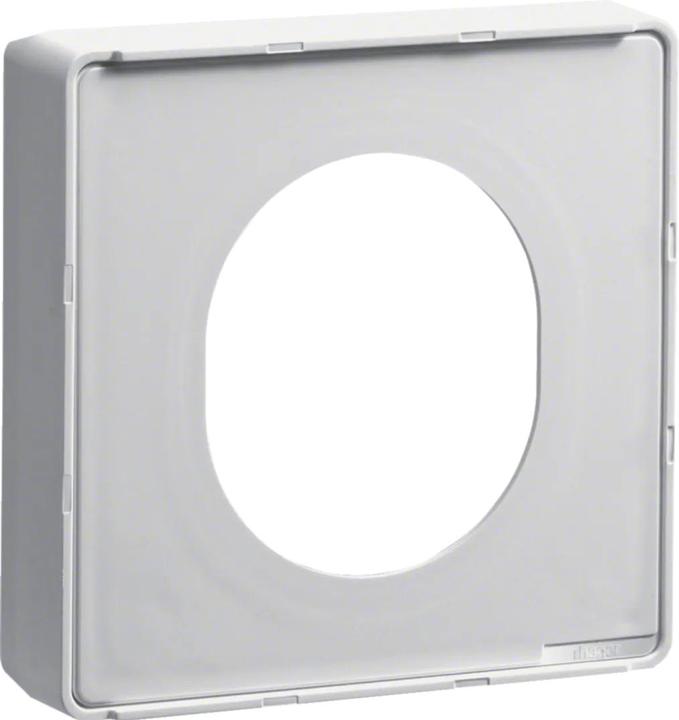

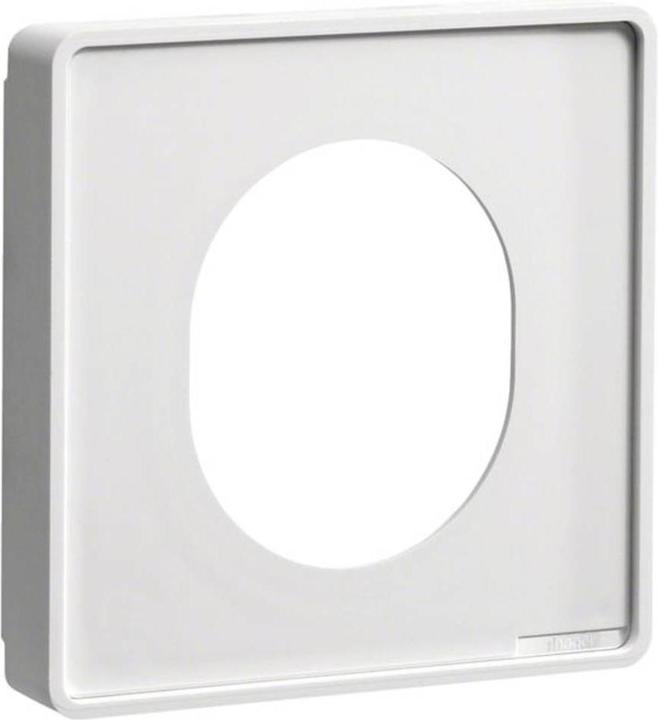

Tehalit cover 1-fold G3374 vws
Manufacturer: Tehalit
Designation: Cover 1-fold CEE socket
Type: G3374 vws

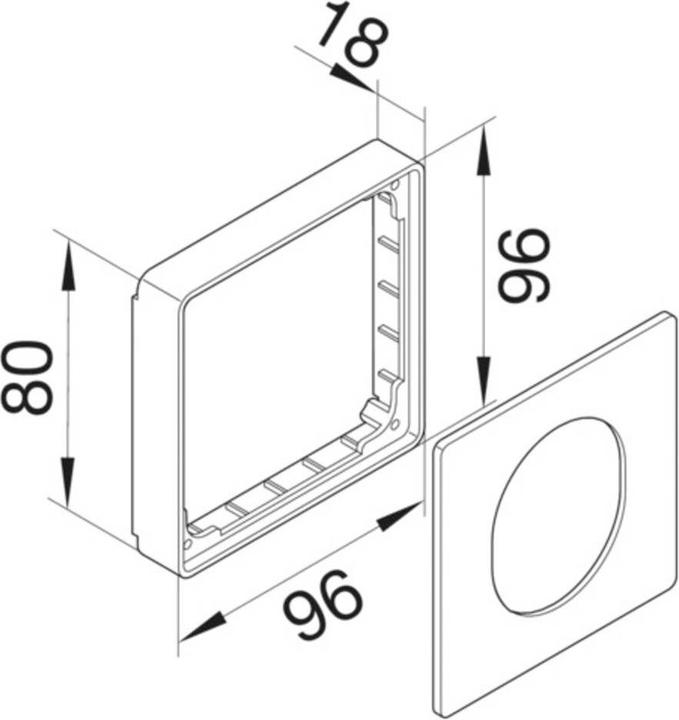

Top width: 80 mm
Length: 97 mm
Number of units: 1
Device type: CEE device socket
Design: Smooth
Material: Plastic
Material grade: Other
Halogen-free: Yes
Surface protection: Untreated
Color: Traffic white
RAL number: 9016
With protective film: Yes
Mounting type: Internal
Cut lamination: Yes
With labeling field: No
Protection class (IP): IP20
Impact resistance: IK07

Tehalit cover 1-fold G3374 vws: More details
Face CEE socket outlet cut lamination halogen-free top part 80 mm traffic white. Cover set consisting of central plate and frame for device installation for CEE socket outlet up to 32 A, for device installation trunking system. Note: For sill trunking with 100 mm and 120 mm top part widths, a corresponding device cover is also required.
