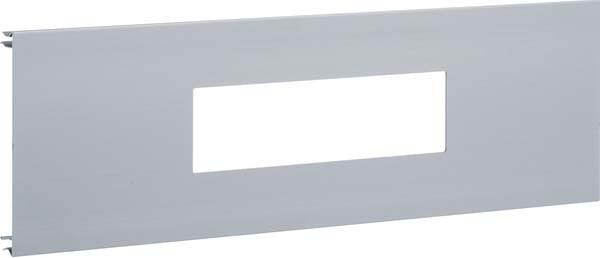

Tehalit cover 3-fold R93137035

Manufacturer: Tehalit
Designation: Cover 3-fold for BRS OT 120
Type: R93137035
Top part width: 120 mm
Length: 375 mm
Opening width: 218 mm
Opening height: 76 mm
Opening diameter: 0 mm
Number of units: 3
Device type: Devices with centre plate
Design: Smooth
Material: Steel
Material quality: Other
Halogen-free: Yes
Surface protection: Coated
Colour: Grey
RAL number: 7035
With protective film: Yes
Fastening type: Internal
Cut lamination: No
With labelling field: No
Protection class (IP): IP20
Impact resistance: IK07

Tehalit cover 3-fold R93137035: more details
Cover 3-fold R18 for flush-mounted insert with frame steel BRS top part 120 mm light grey. Device cover with punching (corner radius 18 mm) for standard device installation with frame from the switch manufacturer, for device installation trunking system.
