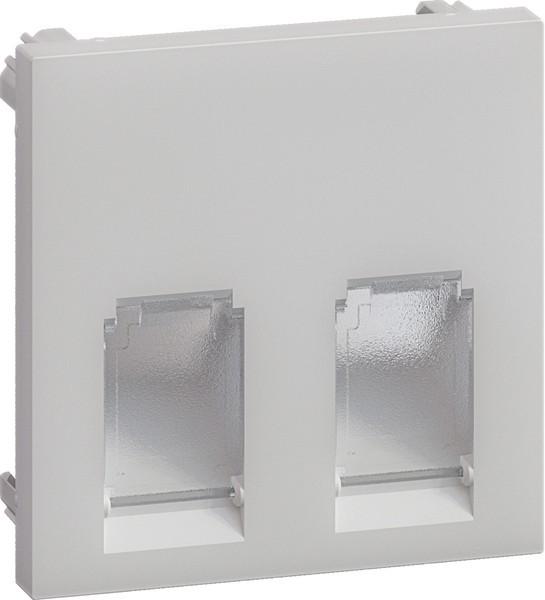

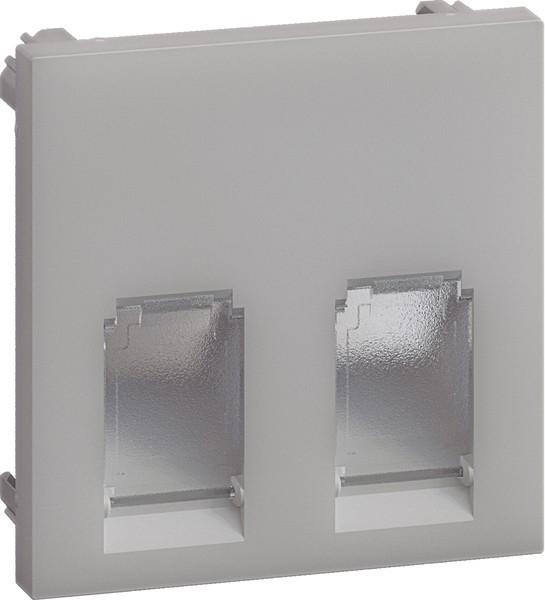

Tehalit central disc GZDM2LAN Manufacturer :Tehalit Designation :Central disc 55 for GMDM...2 lalu Type :GZDM2LAN Composition :Basic element Use :UAE/IAE Support ring :yes With dust protection :no With hinged cover :no Outlet direction :oblique With imprint :no Mounting type :other Material :Plastic Material quality :Thermoplastic Halogen-free :yes Antibacterial treatment :no Surface protection :painted Colour :Aluminium RAL number (similar) :9006 Transparent :no Mounting type :Clamp mounting Number of modules (with modular design) :2 With sockets/couplings :no Suitable for Number of sockets/couplings :2 With strain relief :no Sockets shielded :no Housing shielded :yes Luster terminal :no With lighting :no Suitable for degree of protection (IP) :IP00 Impact resistance :IK07 Device width :55 mm Device height :55 mm Device depth :16 mm Min. device box depth :40 mm Depth of appliance box :40 mm Tehalit central disc GZDM2LAN: more details Central disc 2-fold for mounting frame GMDM..2 for frame cover 55 aluminium. Centre plate for tool-free mounting on 2-gang mounting frame for RJ45 modules type 03, type 04, type 10, type 12, type 13. Without labelling field. For use with frame covers for trunking with central disc dimensions 55 x 55 mm and optional integrated labelling field. EAN: 4012740987264.
