Theben twilight switch LUNA 121 top3 RC AL

Manufacturer: Theben
Designation: Twilight switch with surface-mounted light sensor
Type: LUNA 121 top3 RC AL
Rated voltage: 230 V
Rated frequency: 50-60 Hz
Max. lamp load: 3600 W
Incandescent lamp load: 3600 W
Max. fluorescent lamp load: 3600 VA
Max. fluorescent lamp load (duo circuit): 3600 VA
Max. fluorescent lamp load (parallel compensated): 3600 W
Fluorescent lamp load (parallel compensated): 1200 VA
Max. switching current (cos phi: 0.0 Hz)
Max. switching current (cos phi: 0.6): 10 A
Rated switching current: 16 A
Brightness value setting range: 1-99,000 lx
With programmable night shut-off: Yes
Pushbutton input: Yes
Max. cable length light sensor: 100 m
Protection class light sensor: II
Light sensor mounting type: Wall-mounted
Mounting type: DIN rail
Width in pitch units: 2

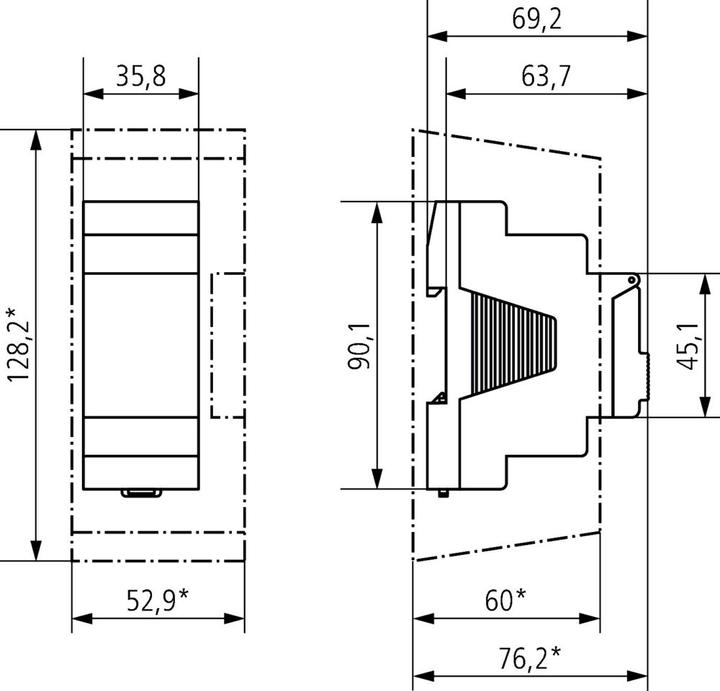

Installation depth: 69.2 mm
Protection class (IP): IP20
Protection class (IP), light sensor: IP55

Digital twilight switch/light controller with integrated timer, 1 channel, weekly program, separate surface-mounted light sensor (IP 55) included, DCF or GPS radio control with external antenna possible, 1-99,000 lx, external input, 3 special programs with yearly function, width 2 TE, app programming possible, secure transmission via optional Bluetooth Low Energy OBELISK top3, maximum manipulation security, time switch programs can only be transmitted from the app to the clock if the Bluetooth OBELISK top3 is in the clock, 600 watts LED power, 800 amps/200 microseconds inrush current, low stand-by power, hour meter, DuoFix plug-in terminals, power reserve and programmed summer/winter time changeover, OBELISK interface for PC programming.

Supplied with: Theben twilight switch with surface-mounted light sensor LUNA 121 top3 RC AL, packaging unit: 1 piece.
