AC or DC input voltage: AC
AC or DC output voltage: DC
Minimum input voltage: 85 V AC
Maximum input voltage: 264 V AC
Minimum output voltage: 12 V DC
Maximum output voltage: 16 V DC
Output current: 500 mA
Rated power: 6 W
Number of outputs: 1
Dimensions: 89.5 x 18 x 59.5 mm
Width: 59.5 mm
Minimum temperature: -25 °C

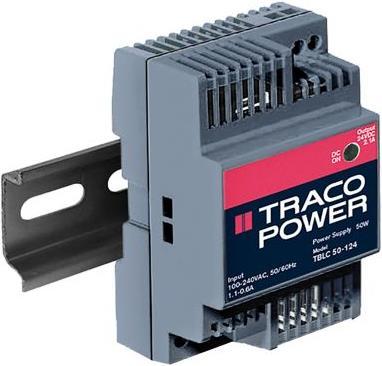

The TBLC series from 6 W to 90 W. The DIN rail-mounted power supplies of the TBLC series are designed for applications in industrial and residential areas. They are more cost-effective than those of the existing TBL series, while maintaining similar electrical specifications. Additionally, they are fully compliant with the new requirements for power supply and efficiency in standby operation (according to ECO standards). They are intended for connection as Class II devices, so safety grounding is not required. Due to their shallow depth, they can be installed in flat racks.

Features and benefits:

• Low-profile housing
• Low output ripple and voltage spikes
• Fully compliant with ECO standards
• UL 1310 Class II, NEC Class 2 compliance and approved according to UL 508
• Universal input range of 85 V AC to 264 V AC
• Operating temperature range of -25 °C to 70 °C
• Short-circuit and overload protection
• Adjustable output voltage and DC-OK indicator

Product application information:
Suitable for use in industrial and residential applications.
