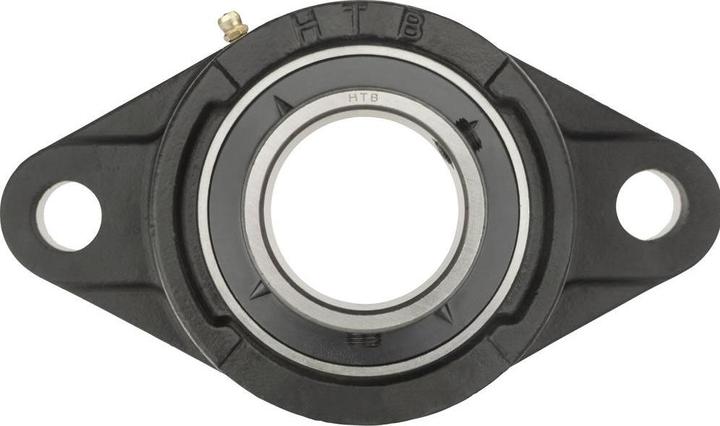

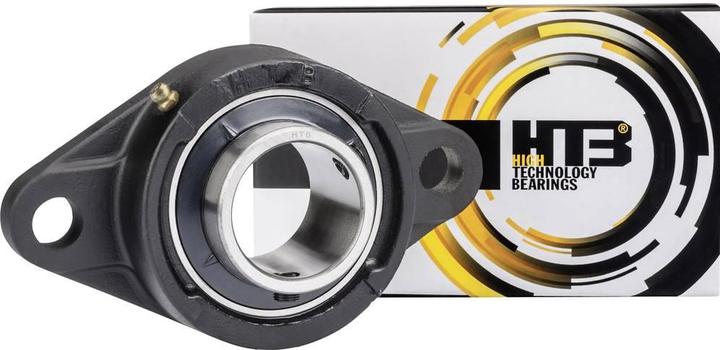

UBC Bearing Flange bearing UCFL, cast iron housing UCFL 207 Bore diameter 35 mm Hole spacing 130 mm
Price in EUR including VAT
Delivered between Tue, 14.4. and Fri, 17.4.
More than 10 pieces in stock at supplier
More than 10 pieces in stock at supplier
Free shipping starting at 30,–
Outside diameter6
Product details

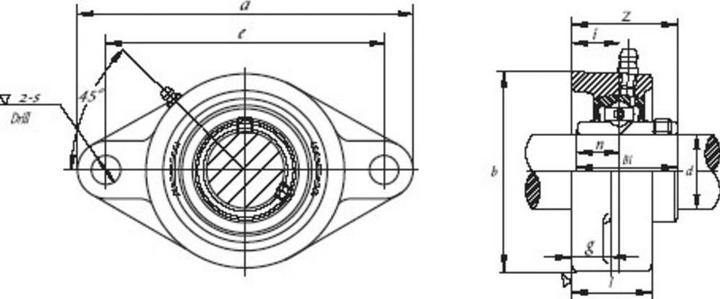

Description of Flange Bearing UCFL, cast iron housing for simple applications such as in agricultural machinery, conveyor systems, and construction equipment. The UCFL unit consists of a sealed bearing and a flange bearing housing made of cast iron. The shaft is secured using set screws on the inner ring. Due to the spherical outer surface of the bearing, misalignment errors of the shaft can be compensated. Technical data: Bore diameter: 35 mm, housing material: cast iron, weight: 1.2 kg, bearing type: flange bearing, hole spacing: 130 mm, dimensions: 161 x 90 x 130 x 19 x 14 x 34 x 16 x 44.4 x 17.5 mm, dynamic radial load rating: 20300 N, static radial load rating: 14000 N, type: UCFL 207.
Outside diameter | 35 mm |
Width | 90 mm |
Item number | 24127542 |
Manufacturer | UBC Bearing |
Category | Ball bearings |
Manufacturer no. | UCFL 207 |
Release date | 10.2.2023 |
Colour | Grey |
Exact colour description | Grey cast iron |
Material group | Metal |
Material | Gray iron |
Load rating dyn. | 20.30 kN |
Load rating stat. | 14 kN |
CO₂ emissions | 79,48 kg |
Climate contribution | EUR 1,25 |
Outside diameter | 35 mm |
Width | 90 mm |
Weight | 1200 g |
