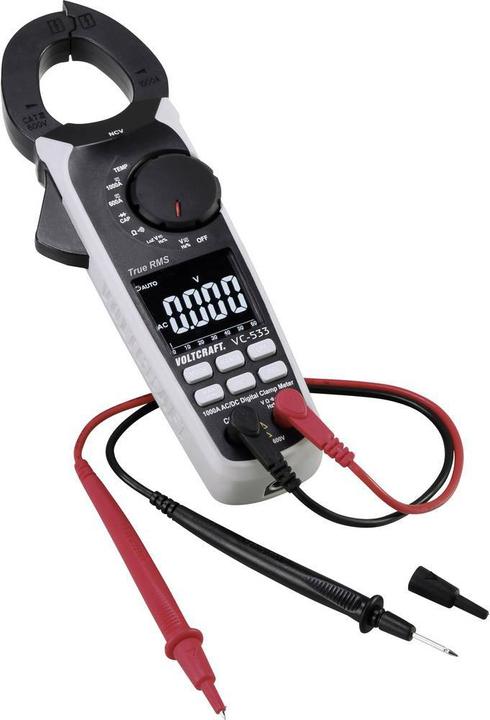

Voltcraft VC533 Current clamp AC/DC
CAT III 600VMore than 10 pieces in stock at supplier
Features

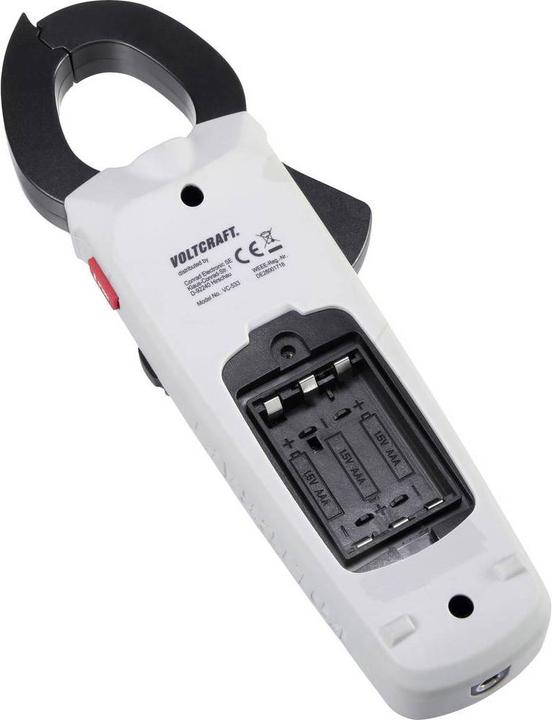

- Current clamp VC-533, safety measuring leads, K-type thermocouple air sensor (-20 to +230°C), K-type measuring adapter, storage bag, 3 micro batteries (type AAA, 1.5V), operating instructionsEUR135,18
- VC-1113 Current clamp Measuring leads 2 x AA batteries Carrying case Operating instructionsEUR87,54
- VC-740 E, 3 micro batteries (AAA), 2 CAT IV safety test leads, temperature sensor (-40 to +250°C type K with banana plug, carrying bag, operating instructions (on CD).EUR161,18
Product details

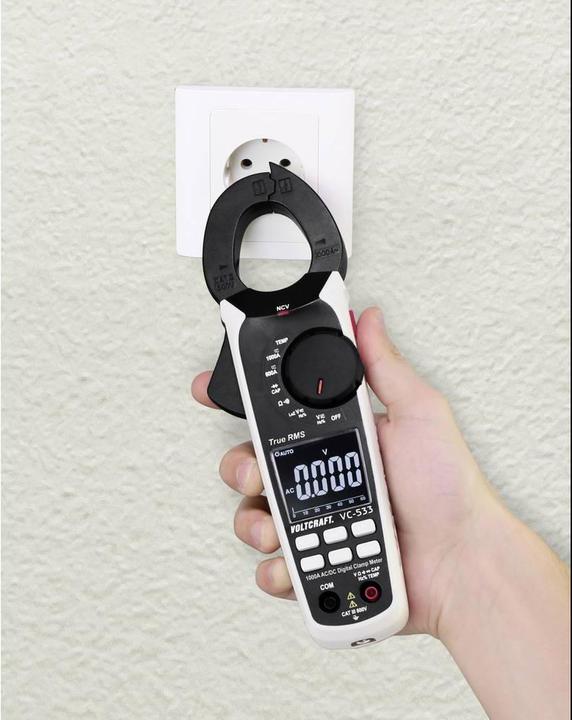

For easy and quick measurement of direct and alternating currents up to 1000 A, the circuit does not need to be interrupted during measurement, unlike with multimeters. The device is perfectly suited for servicing machines in control cabinets and for measuring high currents in automotive and truck electrical systems.
Multimeter functions: The device features voltage, frequency, temperature, capacitance, and resistance measurement functions with automatic range selection, as well as diode testing, True RMS, and acoustic continuity testing. Additionally, it is equipped with non-contact voltage testing (NCV).

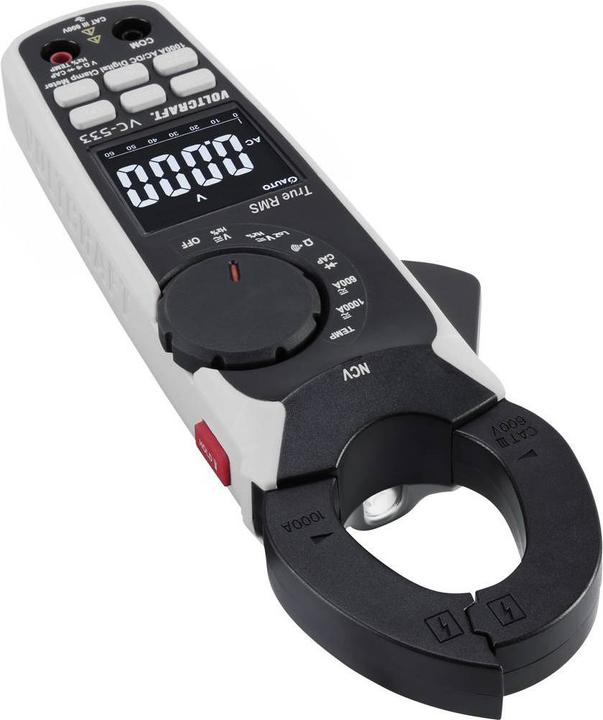

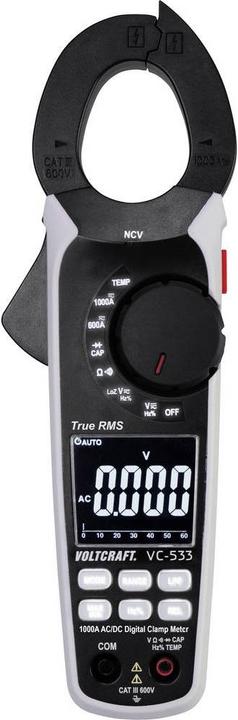

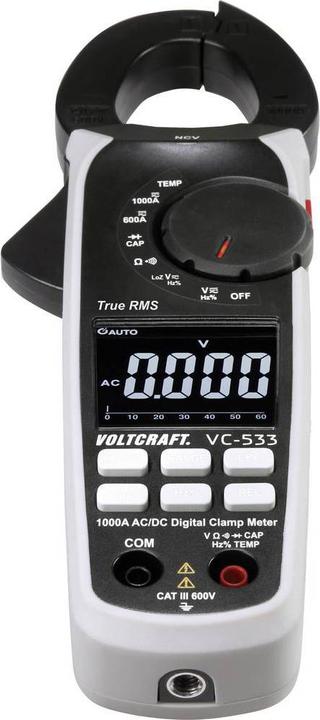

The high-contrast display with 6000 counts and illuminated controls is exceptionally readable in all lighting conditions. Especially in poorly lit control cabinets, this model outperforms conventional current clamps. The display shows 4-digit values up to 5999, regardless of the position of the decimal point. Furthermore, the buttons and the legend for the rotary switch position are illuminated.
The fluctuating measurement values are clearly displayed with the bar graph indicator. The hold button is perfectly reachable with the thumb and is used to save readings when the display cannot be viewed during measurement. This button is ergonomically placed for thumb access, eliminating the need to search for it.

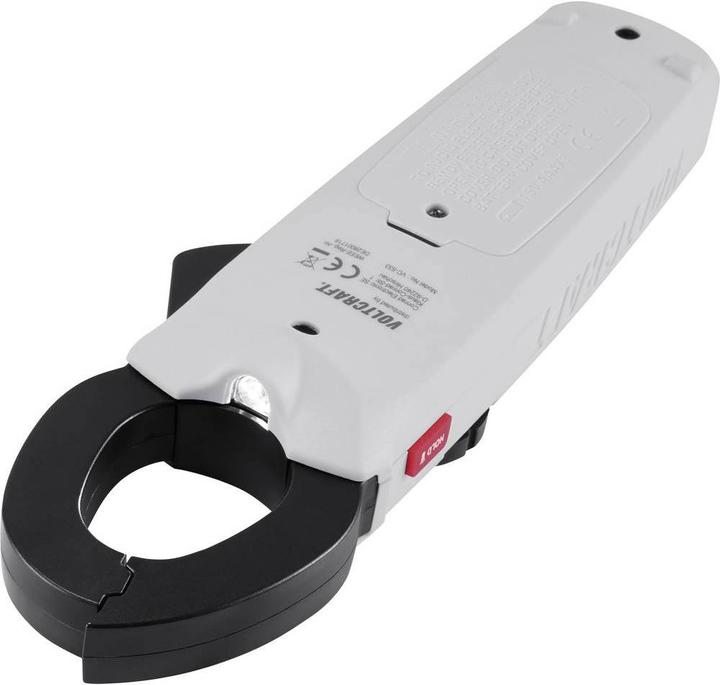

If needed, a bright LED with optics can be activated to illuminate the area directly in front of the clamp. The VOLTCRAFT VC-533 maintains a non-slip contact with the surface, effectively preventing unwanted slipping on uneven surfaces due to its rubberized design.
Thanks to the two-component housing with integrated soft rubber protection, the measuring device is robust and handy, making it suitable for tough applications.
Multimeter type | Pincer ammeter |
voltage type | AC/DC |
measurement tolerance | 0.80 ± % |
multimeter technology | Digital |
measurement type | True RMS |
Item number | 10385759 |
Manufacturer | Voltcraft |
Category | Multimeter |
Manufacturer no. | VC-8466770 |
Release date | 30.1.2019 |
External links |
Multimeter type | Pincer ammeter |
multimeter technology | Digital |
Calibrated according to | Factory standard (without certificate) |
Current clamp Opening range | 37 mm |
display type | Digital |
Manufacturer Type | Vc-533 |
voltage type | AC/DC |
current type | AC/DC |
measurement tolerance | 0.80 ± % |
measurement type | True RMS |
measurement category | CAT III 600V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |

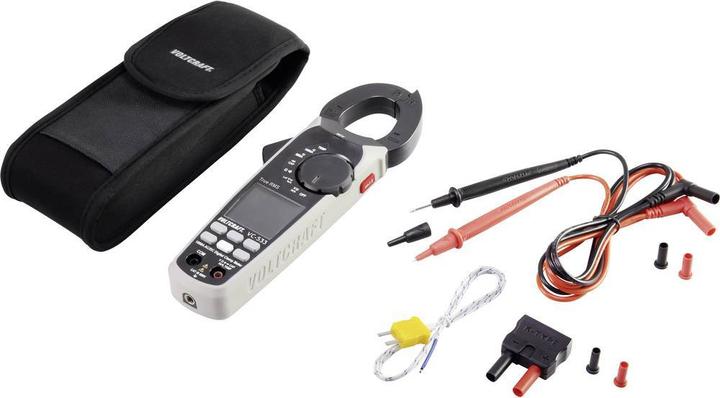

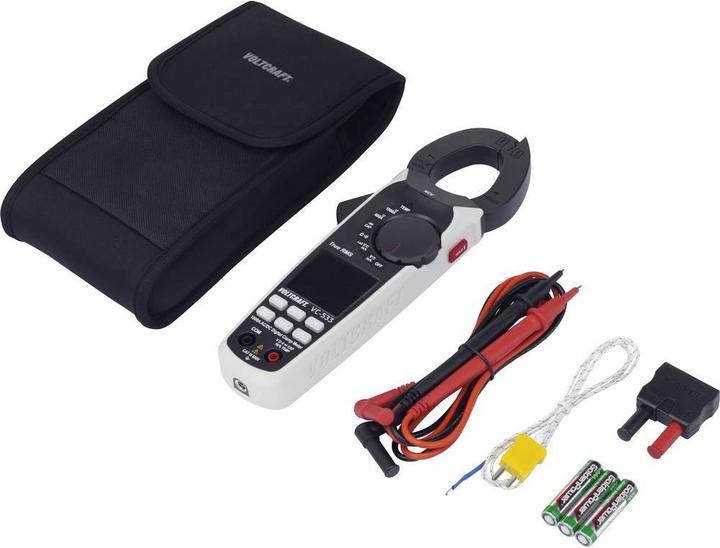

Scope of delivery | Current clamp VC-533, safety measuring leads, K-type thermocouple air sensor (-20 to +230°C), K-type measuring adapter, storage bag, 3 micro batteries (type AAA, 1.5V), operating instructions |
Length | 4 cm |
Width | 23.70 cm |
Height | 7.80 cm |
Weight | 0.33 kg |
