Wago Connection line
1 m, 1.50 mm²Length2
Product details

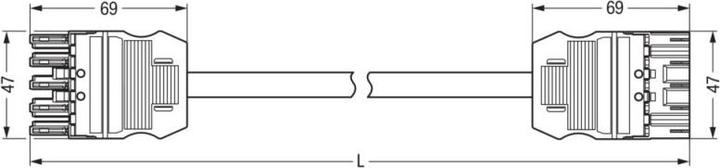

WAGO GmbH & Co. KG connecting cable 771-9995/006-101
Manufacturer: WAGO GmbH & Co. KG
Designation: Connecting cable 5x1.5mm² black
Type: 771-9995/006-101
Rated voltage: 400 V
Rated current: 16 A
Number of poles: 5
Type of protection (IP): IP20
Type of prefabricated cable: Other
Version side 1: Socket
Version side 2: Conductor
End treatment: Ultrasonically compacted wire ends
Total length: 1000 mm
Mechanical coding: Yes
Colour of coding/contact insert: Black
Housing colour: Black
Cable type: H05VV-F
Cable diameter: 9.3 - 11.6 mm
Sheath colour: Black
Pole marking: 3, N, PE, 2, 1
Nominal conductor cross-section: 1.5 mm²
Type of interlock: Separate
Insulating part withstands continuous temperatures up to: 105 °C
Cable withstands continuous temperatures up to: 70 °C
Max. operating temperature at conductor: 75 °C
Halogen-free: No
Fire load: 8.41361 kWh
Surface treatment contacts: Tin-plated
Degree of contamination: 3
Contact resistance: 1 mΩ
Rated impulse voltage: 6 kV
Fire behaviour class to EN 13501-6: Eca
WAGO GmbH & Co. KG connecting cable 771-9995/006-101: more details pre-assembled connecting cable Eca socket plug 5-pole cod. A H05VV-F 5G 1.5 mm² 1 m 1.50 mm² black, EAN: 4044918588416.
Number of outlets | 5 x |
Cable colour | Black |
Item number | 36760189 |
Manufacturer | Wago |
Category | Cable reels |
Manufacturer no. | 771-9995/006-101 |
Release date | 28.6.2023 |
Colour | Black |
Cable reel type | Cable reel with cable |
input voltage | 400 V |
Number of outlets | 5 x |
Cable length | 1 m |
Cable cross section | 1.50 mm² |
Cable colour | Black |
Protection type (IP code) | IP20 |
Country of origin | Germany |
