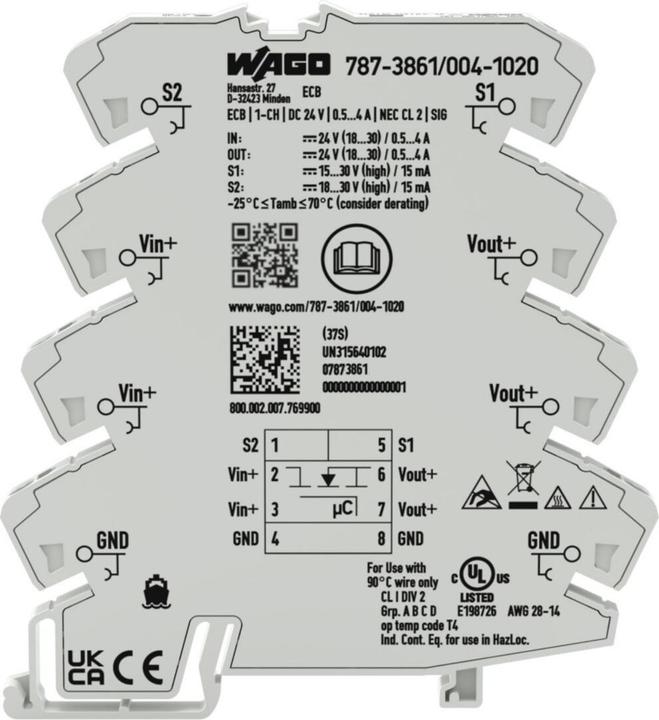

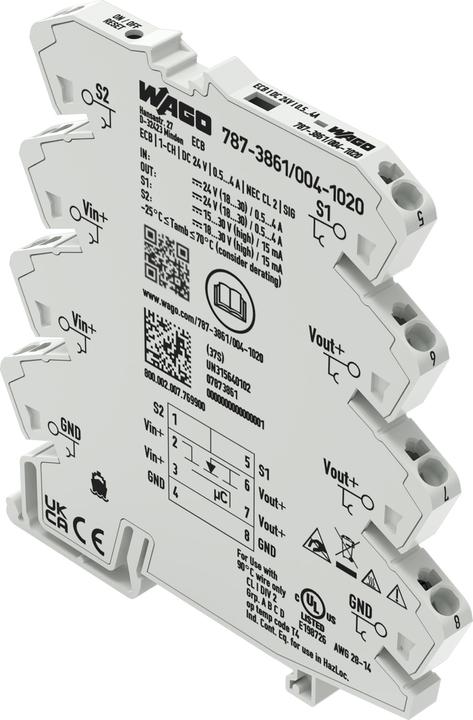

WAGO GmbH & Co KG electronic circuit breaker 787-3861/004-1020

Manufacturer: WAGO GmbH & Co. KG
Designation: Electronic circuit breaker 1-channel, DC 24 V
Type: 787-3861/004-1020
Electrical connection version: Spring-cage connection
With removable terminals: No
1-phase undercurrent possible: No
3-phase undercurrent possible: No
1-phase overcurrent possible: Yes
3-phase overcurrent possible: No
1-phase window possible: No
3-phase window possible: No
Includes function DC voltage undercurrent: No
Includes function DC voltage overcurrent: No
Function DC current window: No
Rated control voltage Us at AC 50 Hz: 18..30 V
Voltage type for actuation: DC
Min. adjustable response delay time: 0.1 s
Max. permissible response delay time: 90 s
External current transformer: No
Width: 6 mm
Height: 97.8 mm
Depth: 94 mm

Electronic circuit breaker 1-channel
Input voltage DC 24 V
Adjustable 0.5 - 4 A
NEC Class 2 signalling contact
EAN: 4066966363500.
