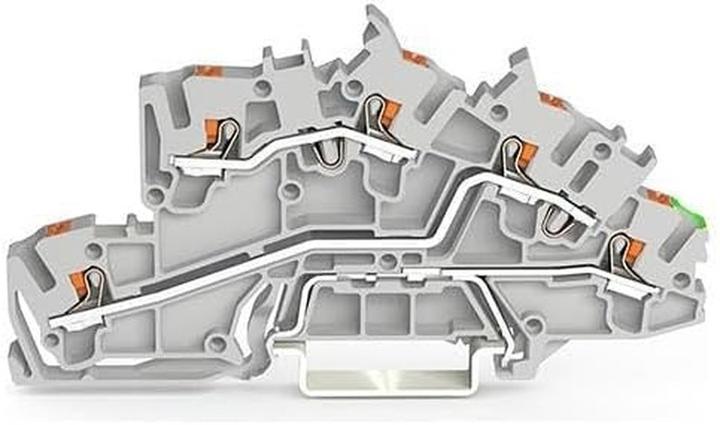

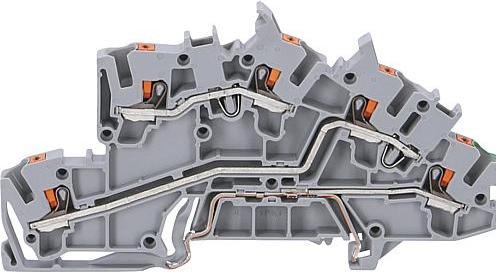

Wago Installation floors- 2203-7645 terminal,with pusher,2,5 mm²,grey
More than 10 items ordered
Suitable for cable cross-section2
Product details
WAGO GmbH & Co. KG installation terminal block 2203-7645. Manufacturer: WAGO GmbH & Co. KG. Designation: Installation terminal block 2.5 mm² with handle. Type: 2203-7645. Connectable conductor cross-section fine-stranded without end sleeve: 0.25 to 4 mm². Connectable fine-stranded conductor cross-section with ferrule: 0.75 to 2.5 mm². Connectable solid conductor cross-section: 0.75 to 4 mm². Connectable stranded conductor cross-section: 0.25 to 2.5 mm². Rated current: 31 A. Rated voltage: 400 V. Electrical connection type 1: Spring-loaded connection. Electrical connection type 2: Spring-loaded connection. Number of potentials: 3. Mounting type: Top-hat rail TH35. Material of the insulating body: Thermoplastic. Operating temperature: 105 °C. Flammability class of the insulating material according to UL 94: V0. Width: 5.2 mm. Height: 95.6 mm. Depth: 46.6 mm. End plate required: Yes. Basic colour: Grey. With PE function: Yes. With N-disconnect slide: No. N-function possible: No. WAGO GmbH & Co. KG installation floor terminal block 2203-7645: further details. Installation floor terminal block with pusher 2.5 mm² L/L/PE ground floor green-yellow. Push-in CAGE CLAMP® 2.50 mm² grey.
Colour | Grey |
Cable connection type | Terminal blocks |
Suitable for cable cross-section | 2.50 mm² |
number of poles | 3 |
Items per sales unit | 50x |
Item number | 22724197 |
Manufacturer | Wago |
Category | Cable joints |
Manufacturer no. | 2203-7645 |
Release date | 7.10.2022 |
Exact colour description | Grey |
Colour | Grey |
Material | Thermoplastic resin |
Material group | Plastic |
Cable connection type | Terminal blocks |
Suitable for cable cross-section | 2.50 mm² |
number of poles | 3 |
Country of origin | Germany |
CO₂ emissions | 16,89 kg |
Climate contribution | EUR 0,42 |
Scope of delivery | Installation floor terminal with push-button 2.5 mm² L, L, PE Push-in CAGE CLAMP® 2.50 mm² grey |
Items per sales unit | 50x |
Length | 29 mm |
Width | 5.20 mm |
Height | 95.60 mm |
Product Safety |
