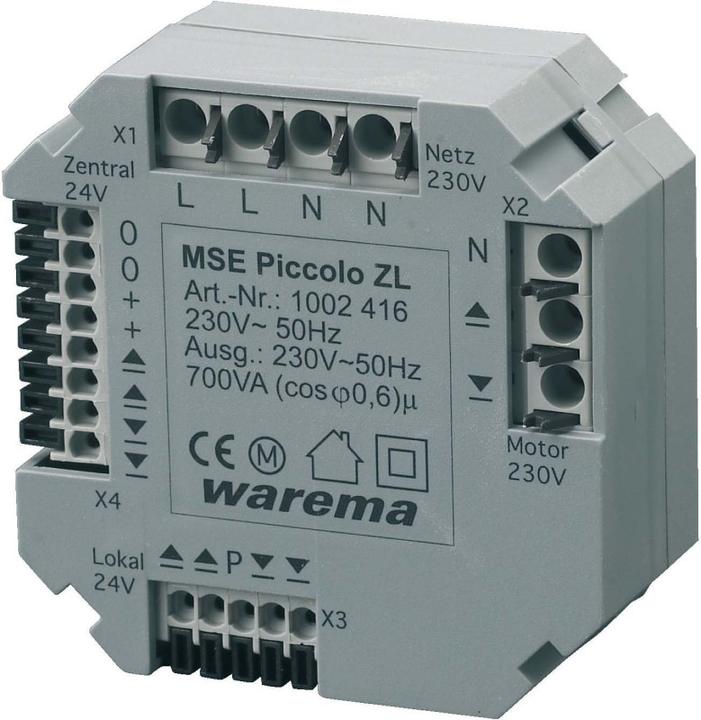

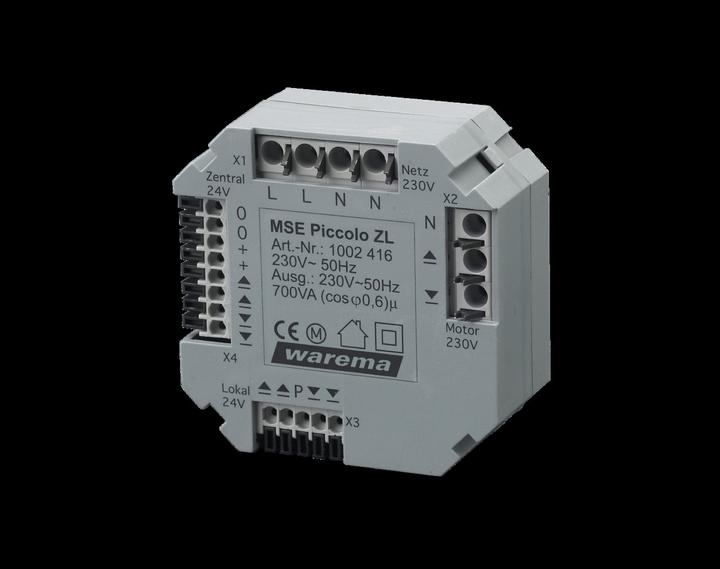

Warema Sonnen MSE Piccolo ZL 1002416

Manufacturer: Warema Sonnen
Designation: MSE Piccolo ZL UP
Type: 1002416
Rated operating current Ie: 0.023 A
Rated operating voltage Ue at AC 50 Hz: 0 V
Rated operating voltage Ue at AC 60 Hz: 0 V
Rated operating voltage Ue at DC: 30 V
Rated operating frequency: 0 Hz
Current detection module: no
Voltage detection module: no
Type of connection technology: other
Rated control supply voltage Us at AC 50 Hz: 0 V
Rated control supply voltage Us at AC 60 Hz: 0 V
Rated control supply voltage Us at DC: 36 V
Type of voltage for operation: DC
Number of outputs, contact-bearing: 2
Number of digital inputs: 4
Input for thermistor connection: no
Input for earth fault detection: no
Input for analog temperature sensors: no
Switching function: monostable
Execution of electrical connection for auxiliary and control circuit: other
Execution of the interface: other
Protection class (IP): IP20
Protection class (NEMA): other

The Warema Sonnen MSE Piccolo ZL 1002416 is a motor control unit (MSE) designed to control a 230 V AC sun protection drive. It allows for direct control of a 230 V sun protection drive via a sun protection central unit and a local button. Additionally, multiple motor control units can be grouped together and operated collectively by a single button. The logic behavior of the switch is time logic, which means that the MSE will enter self-holding mode after approximately 2 seconds of button activation. A shorter button press generates a reversing pulse (for louver products). The supply voltage for the MSE is generated in an external power supply or in an external floor control unit and supplied via the bus line. Note: An external power supply or floor control unit is required.
EAN: 4251317202038.
