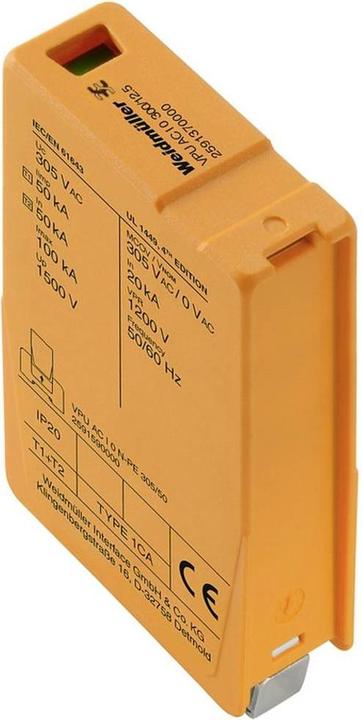

Weidmüller Surge Protection Device VPU AC I 0 300/12.5

Manufacturer: Weidmüller
Designation: Surge protection AC, 230 V
Type: VPU AC I 0 300/12.5
DC network form: no
Number of conductors (excluding ground): 1
Nominal discharge current (8/20): 20 kA
Maximum discharge current (8/20): 20 kA
Nominal voltage AC: 230 V
Maximum continuous voltage AC: 300 V
Integrated short-circuit protection: no
Integrated pre-fuse: no
Device signaling: optical
Test class Type 2: yes
Protection class (IP): IP20

The device serves for surge protection in power engineering and electricity supply. It should be installed close to the supply point of the system to be protected.
EAN: 4050118599565.
