Burglary protection + Alarm systems
EUR174,13
Busch-Jaeger BJ 1515 U-12-101 alarm signalling insert safety technology Busch-Infoline
Best Busch-Jaeger products in the Burglary protection + Alarm systems category
On this page you'll find a ranking of the best Busch-Jaeger products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Busch-Jaeger BJ 1515 U-12-101 alarm signalling insert safety technology Busch-Infoline
Busch-Jaeger Alarm Reporting Unit 1515 U-12-101
Manufacturer: Busch-Jaeger
Designation: Alarm Reporting Unit
Security Technology Type: 1515 U-12-101
Design: Room Light/Sounder
Color: White
Voltage Type: AC
Rated Voltage AC: 15 V
Rated Voltage DC: 15 V
Protection Class (IP): IP20
Device Width: 71 mm
Device Height: 71 mm
Device Depth: 29 mm
Additional Details:
Red display. For the construction of call and alarm systems. Monitors a current loop for interruptions or short circuits. With storage of the alarm state (can be disabled). With reset input. Continuous acoustic alarm, type 70 dB at 1 m distance. Pulsating optical alarm. Maintenance-free due to the use of LEDs. A backup power supply is required for installations according to DIN VDE 0834. No spreader. Screw mounting via keyholes.

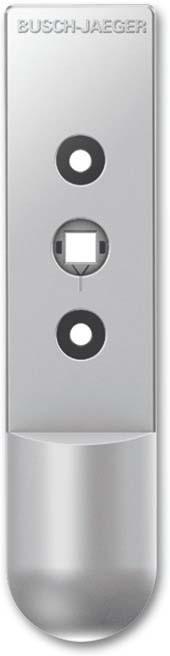

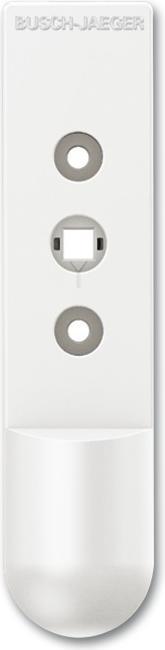

2. Busch-Jaeger Window detector
Busch-Jaeger Window Sensor 6222/1 AP-64-WL
Manufacturer: Busch-Jaeger
Designation: Wireless Window Sensor, studiows/mt
Type: 6222/1 AP-64-WL
KNX Bus System: no
KNX Radio Bus System: yes
Radio Bus System: yes
LON Bus System: yes
Powernet Bus System: yes
Other Bus Systems: free@home
Bidirectional Radio: yes
Version: other
Mounting Type: Surface-mounted
With Bus Coupling: yes
Color: white
Protection Class (IP): IP20
The window sensor is used to monitor and transmit the current position of the window handle (window open, closed, tilted). The status can be visualized on the free@home panel and in the free@home app. The window sensor is mounted between the existing window handle and the window frame. The existing window handle is reused.
Suitable for window handles: 7 mm square, 43 mm screw spacing, cam diameters of 10 and 12 mm, maximum size of the mounting plate of 34 x 77 mm (WxH). No wiring required. Accessories for mounting (square extension, screws, cam adapter) of the window sensor are included in the delivery.
Battery included. Battery type: CR2. Notification of low battery status in the free@home app. Programming via the web interface of the System Access Point. Further information on commissioning and operation can be found in the system manual and the online user manual in the current online catalog.
EAN: 4011395215562.
3. Busch-Jaeger 6222/2 AP-65-WL
Busch-Jaeger Universal Detector 6222/2 AP-65-WL
Manufacturer: Busch-Jaeger
Designation: Wireless Universal Detector, basalt black
Type: 6222/2 AP-65-WL
KNX Bus System: no
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: other
Bidirectional Radio: yes
Design: other
Mounting Type: other
With Bus Coupling: no
Color: black
RAL Number (similar): 9005
Number of Digital Inputs: 1
Protection Class (IP): other
Further Details: Wireless Universal Detector for Busch-free@home®. For monitoring and transmitting the status (open, closed) of roof windows, skylights, doors, and gates. Additional connection option for an external, potential-free sensor (either normally open or normally closed contact). The status can be visualized on the free@home panel and in the free@home app. Separate evaluation and monitoring of the channels. The universal detector and magnets can be mounted using adhesive film or screws. Accessories (included in delivery): adhesive film, screws, magnet.
Battery Type: CR2
Low battery notification in the free@home app.
Max. cable length for external sensor: 5 m
Connection cross-section for external sensor: 0.14...0.5 mm² (single-core)
Programming via the web interface of the system access point. Further information on commissioning and operation can be found in the system manual and the online user guide.
EAN: 4011395215593.
4. Busch-Jaeger Window detector 6222/1 AP-66-WL
Busch-Jaeger Window Sensor 6222/1 AP-66-WL
Manufacturer: Busch-Jaeger
Description: Wireless Window Sensor, Stainless Steel
Type: 6222/1 AP-66-WL
KNX Bus System: no
KNX Radio Bus System: yes
Radio Bus System: yes
LON Bus System: yes
Powernet Bus System: yes
Other Bus Systems: free@home
Bidirectional Radio: yes
Design: other
Mounting Type: Surface-mounted
With Bus Coupling: yes
Color: Stainless Steel
Protection Class (IP): IP20
The window sensor is used to monitor and transmit the current position of the window handle (window open, closed, tilted). The status can be visualized on the free@home panel and in the free@home app. The window sensor is mounted between the existing window handle and the window frame. The existing window handle is reused.
Suitable for window handles: 7 mm square, 43 mm screw spacing, cam diameter 10 and 12 mm, maximum size of the mounting plate 34 x 77 mm (WxH). No wiring required. Accessories for mounting (square extension, screws, cam adapter) of the window sensor are included in the delivery. Battery included. Battery type: CR2. Low battery notification in the free@home app. Programming via the web interface of the system access point. For more information on commissioning and operation, please refer to the system manual and the online user guide in the current online catalog.
EAN: 4011395232477.
5. Busch-Jaeger 6222/1 AP-65-WL
Busch-Jaeger Window Sensor 6222/1 AP-65-WL
Manufacturer: Busch-Jaeger
Designation: Wireless Window Sensor, basalt grey
Type: 6222/1 AP-65-WL
KNX Bus System: no
KNX Radio Bus System: yes
Radio Bus System: yes
LON Bus System: yes
Powernet Bus System: yes
Other Bus Systems: free@home
Bidirectional Radio: yes
Design: other
Mounting Type: Surface-mounted
With Bus Coupling: yes
Color: black
Protection Class (IP): IP20
The window sensor is used to monitor and transmit the current position of the window handle (window open, closed, tilted). The status can be visualized on the free@home panel and in the free@home app. The window sensor is mounted between the existing window handle and the window frame. The existing window handle is reused.
Suitable for window handles:
- 7 mm square
- 43 mm screw spacing
- Cam diameter 10 and 12 mm
- Maximum size of the mounting plate of 34 x 77 mm (WxH)
No wiring required. Accessories for mounting (square extension, screws, cam adapter) of the window sensor are included. Battery included.
Battery Type: CR2
Notification of low battery status in the free@home app. Programming via the web interface of the System Access Point. Further information on commissioning and operation can be found in the system manual and the online operating instructions in the current online catalog.
EAN: 4011395215586.

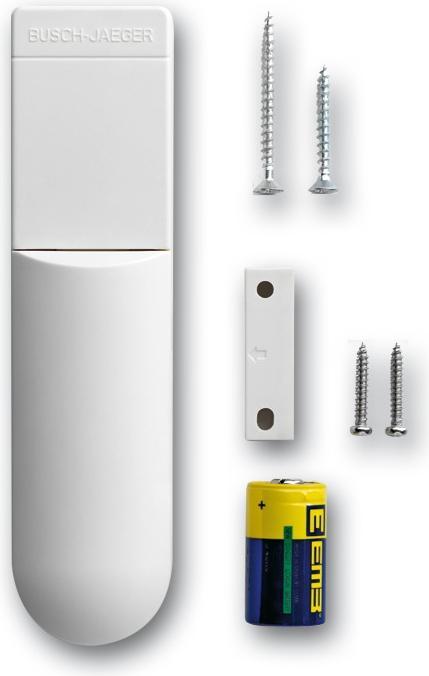

6. Busch-Jaeger Universal detector
Busch-Jaeger Universal Sensor 6222/2 AP-64-WL
Manufacturer: Busch-Jaeger
Designation: Wireless Universal Sensor
Type: 6222/2 AP-64-WL
Other Bus Systems: free@home
Bidirectional Radio: yes
Design: other
Mounting Type: surface-mounted
Color: white
Number of Digital Inputs: 1
Protection Class (IP): IP20
The universal sensor is used to monitor and transmit the status (open, closed) of roof windows, skylights, doors, and gates. It is possible to connect an external potential-free sensor (either a normally open or normally closed contact). The status can be visualized on the free@home panel and in the free@home app. There is a separate evaluation and monitoring of the channels.
The universal sensor and the magnet can be attached using adhesive film or screws. Accessories (adhesive film, screws, magnet) are included in the delivery.
Battery Type: CR2
Notification of low battery status in the free@home app.
Max. cable length for external sensor: 5 m
Connection cross-section for external sensor: 0.14...0.5 mm² (single-stranded)
Programming via the web interface of the system access point. More information on commissioning and operation can be found in the system manual and the online user manual in the current online catalog.
EAN: 4011395215579.
