Best Eaton products in the Cable joints category
On this page you'll find a ranking of the best Eaton products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

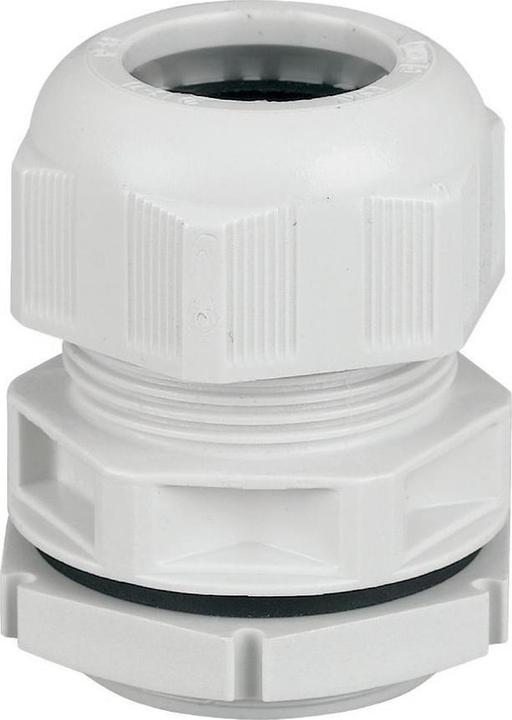

1. Eaton Electric GmbH Cable gland V-M20
The Eaton cable gland V-M20 is a high-quality solution for the safe and reliable connection of cables. Made from halogen-free polyamide, this cable gland offers excellent resistance to environmental influences and mechanical stress. With an IP68 protection rating, it is ideal for applications that require high protection against dust and water. The cable gland is suitable for cable diameters ranging from 8 to 13 mm and features an integrated strain relief that ensures secure fixation of the cables. The V2 fire class according to UL94 provides additional safety in critical applications. This cable gland is not only functional but also easy to install, making it a practical choice for various industrial applications.
- IP68 protection rating, suitable for applications with high demands for dust and water tightness
- Integrated strain relief for additional safety and stability of the cable connection
- Made from halogen-free polyamide to meet environmentally friendly standards
- V2 fire class according to UL94, suitable for use in safety-critical areas
- Temperature range from -25 to +70 °C, ideal for various environmental conditions.
2. Eaton Electric GmbH Cable gland metric V-M40
The Eaton Electric GmbH metric cable gland V-M40 is a high-quality solution for secure cable entry. It is made of robust polyamide and offers a high protection rating of IP68, making it ideal for use in demanding environments. This cable gland is suitable for cable diameters ranging from 16 to 28 mm and ensures a reliable connection with its integrated strain relief. The construction is halogen-free and meets the fire class V2 according to UL94, providing additional safety. With an operating temperature range of -20 to 120 °C, it is versatile and offers a long service life. The straight design and metric thread type make installation simple and efficient.
- Protection class IP68, suitable for applications under extreme conditions
- Integrated strain relief for additional safety
- Halogen-free material that is environmentally friendly
- Operating temperature range of -20 to 120 °C for versatile applications
- Fire class V2 according to UL94 for enhanced fire safety.
3. Eaton Terminal set PE/N max. 63A 2x25mm2 + 293634
The PE/N terminal set from Eaton is a high-quality plug terminal designed for a maximum current of 63A. It provides a reliable connection for cables with a cross-section of up to 25 mm². The terminal strip is equipped with a holder, allowing for easy installation and handling. With a total of 74 connections for 16 mm² and 2 connections for 25 mm², this set offers a flexible solution for various electrical applications. Made in Germany, the product meets high-quality standards and is suitable for use in demanding environments. The terminal set is made of durable plastic and comes with the necessary mounting materials to ensure secure installation.
- Maximum current of 63A
- Includes 74 connections for 16 mm² and 2 connections for 25 mm²
- Made in Germany from high-quality plastic.

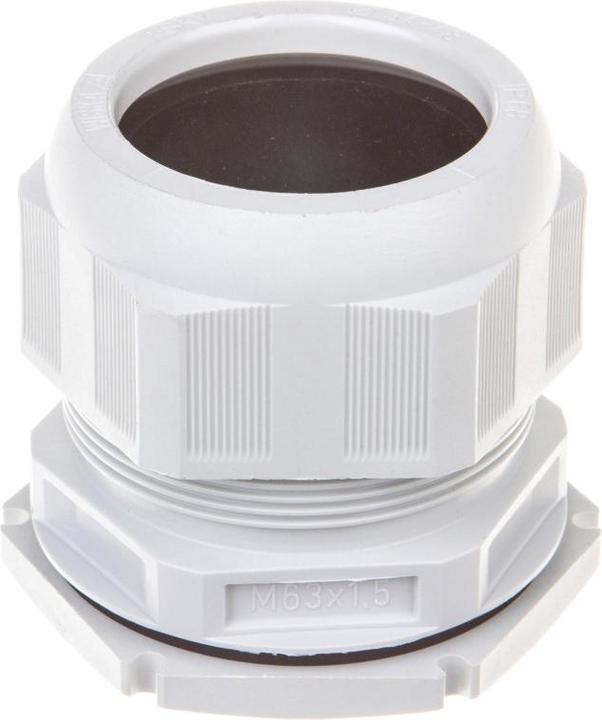

4. Eaton Cable gland, M63, RAL 7035, IP68 214835
Eaton cable gland V-M63 Manufacturer :Eaton Designation :Cable gland metric Type :V-M63 Thread type :metric Nominal thread size metric/PG :63 Nominal thread size in inches NPT/gas pipe thread :other Thread pitch :1.5 mm Thread length :15 mm Width across flats :68 mm Hexagonal dimension :0 mm Suitable for cable diameter :34...48 mm Material :plastic Material grade :polyamide (PA) Surface protection :untreated Halogen-free :yes Glass-fibre reinforced :no Protection class (IP) :IP68 Impact-resistant :yes Colour :grey RAL number :7035 Bending protection :no With locknut :yes Engaging in opening :no Version :straight Multiple sealing insert :no Flat cable gland :no With strain relief :yes Type of seal :Cut-out sealing ring Separable gland :no Application temperature :-20..120 °C Explosion-proof version :no For Ex-zone gas :without For Ex-zone dust :without For armoured cables :no EMC version :no Shielded :no Eaton cable gland V-M63: further details cable gland, cable entry=M63, bore diameter=63,5mm, use cable NYM/NYY, 4-wire=NYM 4x35qmm , protection class IP68 up to 5 bar (30min), polyamide, halogen free, RAL 7035, with locknut and integrated strain relief, fire class V2 according to UL94, , EAN: 4015082148355.

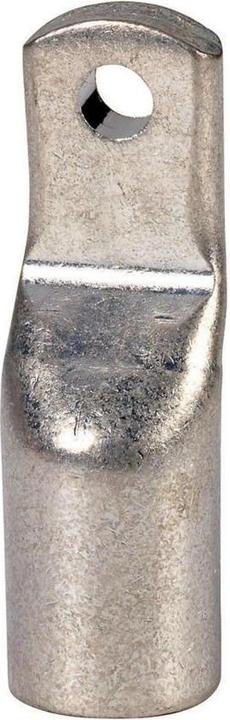

5. Eaton Electric GmbH Cable lug NZM3-XKS240 240qmm
The Eaton cable lug NZM3-XKS240 is a high-quality connection element designed for use in the NZM circuit breaker series. With a nominal cross-section of 240 mm², this cable lug provides a reliable and secure connection for electrical applications. Its slim design allows for flexible mounting, while the 180° connection angle supports horizontal installation. The cable lug is tinned, offering additional surface protection and increasing corrosion resistance. It is suitable for use with 3- and 4-pole switches and facilitates easy integration into existing systems. The modular design simplifies adaptation to various applications and requirements. It is important to note that this cable lug is not UL/CSA approved and must be insulated when used without a cover.
- Tinned surface for increased corrosion protection
- Suitable for 3- and 4-pole switches
- Flexible mounting through modular functional groups
- Slim design for space-saving applications
- Not UL/CSA approved; insulated use required.

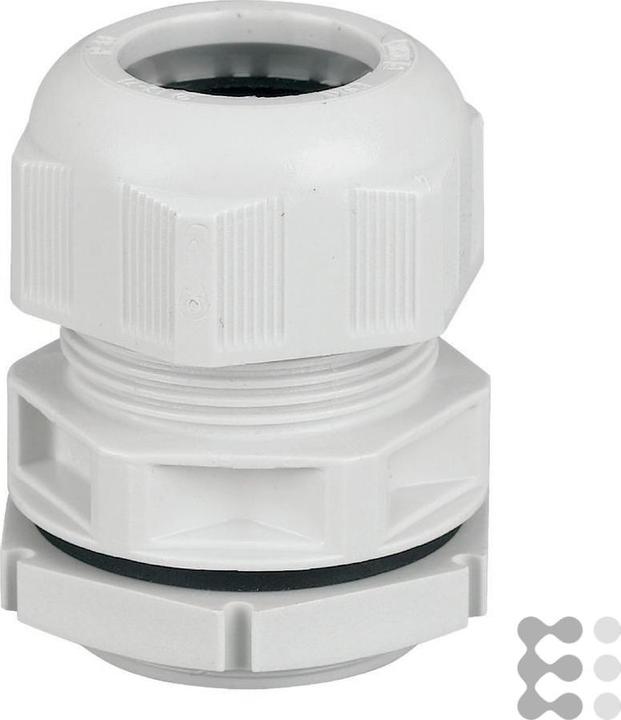

6. Eaton Electric GmbH Cable gland V-M25
The Eaton Electric GmbH cable gland V-M25 is a high-quality solution for secure and reliable cable entry. It is specifically designed for cables with a diameter of 9 to 12 mm and offers an IP68 protection rating, ensuring effective protection against the ingress of water and dust. This cable gland is made from halogen-free polyamide and is characterized by its high impact resistance. The use of materials that meet the V2 fire classification according to UL94 provides additional safety. The V-M25 features an integrated strain relief and comes with a counter nut, making installation easier and enhancing stability. It is suitable for use in a temperature range of -20 to 120 °C, thus meeting the requirements for various applications.
- IP68 protection rating for high water and dust resistance
- Integrated strain relief for additional safety
- Halogen-free polyamide for environmentally friendly use
- Suitable for cable diameters of 9 to 12 mm
- Temperature resistant from -20 to 120 °C.

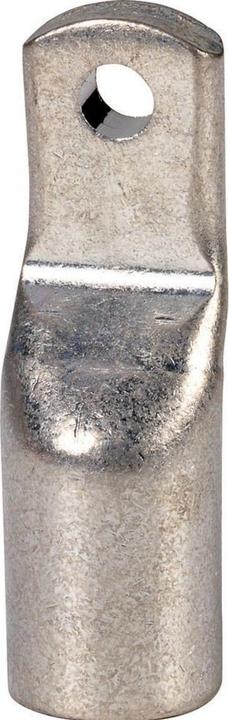

7. Eaton Cable lug, 150qmm, narrow version 59777
Eaton cable lug KS150-NZM7
Manufacturer: Eaton
Designation: Cable lug 150 qmm, narrow version
Type: KS150-NZM7
Connection angle: 180° (horizontal)
Number of fixing holes: 1
Nominal cross-section: 150 mm²
Surface protection: Tin-plated
Identification colour: Without
Eaton cable lug KS150-NZM7: further details
Optional accessories for the NZM circuit-breaker range offer a comprehensive portfolio of application options for worldwide use. Mounting is flexible and simple thanks to modular function groups.
Notes: Type includes a cable lug for 3- or 4-pole switches. Special cable lug in narrow version. Not UL/CSA approved. When using the cable lugs without cover NZM2(-4)-XKSA, they must be insulated. Suitable for: NZM2(-4), PN2(-4), N2(-4).
8. Eaton Electric GmbH cable lug Cu cable NZM3-XKS185
Eaton Cable Lug NZM3-XKS185
Manufacturer: Eaton
Description: Copper Cable Lug
Type: NZM3-XKS185
Connection Angle: 180° (horizontal)
Number of Mounting Holes: 1
Nominal Cross Section: 185 mm²
Surface Protection: Tinned
Identification Color: None
Eaton Cable Lug NZM3-XKS185: Additional Details
Optional accessories for the NZM circuit breaker series offer a comprehensive portfolio of application options for global use. Installation is always flexible and easy thanks to the modular functional groups.
Notes: This type includes a cable lug for 3- or 4-pole switches. Special cable lug, narrow design. Not UL/CSA approved. When using lugs without NZM3(-4)-XKSA cover, they must be insulated. Usable for: NZM3(-4), PN3, N(N/O)3(-4), NZM4(-4), N(N/O)4(-4).
9. Eaton Cable gland, M50, RAL 7035, IP68 206913
The Eaton cable gland V-M50 is a high-quality solution for secure and reliable cable entry. It is made from robust polyamide and offers an excellent protection rating of IP68, meaning it is protected against the ingress of water and dust. This cable gland is suitable for cable diameters ranging from 21 to 35 mm and features an integrated strain relief that ensures a secure connection. With a thread length of 14 mm and a thread pitch of 1.5 mm, it is easy to install and provides high stability. The gray color according to RAL 7035 ensures discreet integration into various environments. This cable gland is ideal for applications where a high level of protection and reliability is required.
- Protection rating IP68, suitable for use in damp environments
- Integrated strain relief for added safety
- Halogen-free material for environmentally friendly applications
- Temperature range from -20 to 120 °C for versatile applications
- Suitable for cable diameters from 21 to 35 mm.
10. Eaton Cable lug 95qmm narrow version KS95-NZM7
Optional accessories for the NZM circuit breaker series offer a comprehensive portfolio of application possibilities for global use. The installation is flexible and straightforward thanks to modular functional groups. Notes: The type includes a cable lug for 3- or 4-pole switches. Special cable lug in a narrow design. Not UL/CSA approved. When using the cable lugs without cover NZM2(-4)-XKSA, they must be insulated. Usable for: NZM2(-4), PN2(-4), N2(-4).
