Best selling Junction boxes from Kaiser
On this page you'll find a ranking of the best Kaiser products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Kaiser Drilling template 1190-65
The 1190-65 drilling template from Kaiser Elektro is a precise tool designed for the quick and accurate creation of installation openings for device boxes and device connection boxes in various wall types. With its diamond grinding crown, it allows for clean and dust-free processing, supported by an integrated dust extraction system. This feature is particularly advantageous for indoor applications, as it keeps the work environment clean. The drilling template is suitable for both vertical and horizontal pre-drilling and offers flexible handling for different combination distances. The use of hardened drill bushings ensures high durability and precision during application. A foldable guide pin facilitates the initial drilling and provides additional stability during the drilling process.
- Suitable for all wall types
- Integrated dust extraction for clean processing
- Flexible pre-drilling options for various combination distances
- High-quality hardened drill bushings for durability
- Foldable guide pin for precise initial drilling.
2. Kaiser Telescopic tool carrier (W x H)
For dowel-less screw fastening of devices such as lights and motion switches, which are attached to walls and ceilings on the external insulation. Suitable for insulation thicknesses from 80 to 200 mm. The maximum weight load is 50 N (5 kg) for both wall and ceiling fastening.
3. Kaiser Telescopic device box
Kaiser telescopic device box 1159-61
Manufacturer: Kaiser
Designation: Telescopic device box
Type: 1159-61
Mounting type: Flush-mounted
Shape: Square
Design: Device box
Version: Single
With rotating ring: No
Coupleable: Yes
Filling: None
Length: 68 mm
Width: 70 mm
Depth: 50 mm
Internal depth: 49 mm
For number of device inserts: 1
Device fastening: Screws
With screws: No
Housing entry through break-out opening: No
Housing entry through sealing membrane: No
Housing entry through pipe socket: No
Housing entry through stepped membrane: No
For pipe diameter: 20 mm
Suitable for cable diameter: 13.3 mm
Pipe locking: Yes
Pipe locking optional: No
Rear entry: Yes
Number of entries: 4
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Color: Gray
Protection class (IP): IP20
Cover design: None
Transparent cover: No
Cover fastening: Screwed
Seal-able: No
Function maintenance: None
With shielding: No
Air-tight: No
Max. conductor cross-section: 2.5 mm²
Clamp position fixed: No
Light hook fastening: No
Socket: None
Special application: None
With partition wall: No
Kaiser telescopic device box 1159-61: additional details
Telescopic device box (1159-61) for the safe installation of lights, motion detectors, and many other devices in and on insulated facades. Optimized for today's insulation thicknesses, the telescopic products allow for diverse applications in insulations ranging from 80 to 200 mm. The two pipe entries of the base carrier ensure a secure pipe connection, and the integrated cable routing in the carrier arm allows for easy and quick cable insertion.
Depth: 50 mm
Application area: Installation on or in the insulated exterior facade
Length: 68 mm
Width: 70 mm
EAN: 4013456537057.
4. Kaiser Junction box
Kaiser junction box 9197-91
Manufacturer: Kaiser
Designation: Junction box
Dimensions: 205 x 235 x 72 mm
Type: 9197-91
Mounting type: Cavity wall
Shape: Rectangular
Design: Junction box, single
With rotating ring: No
Couplable: No
Diameter: 68 mm
Length: 235 mm
Width: 205 mm
Depth: 72 mm
Mounting of devices: Screw
With screws: Yes
Housing feed-through through knock-out opening: Yes
Housing feed-through through sealing membrane: No
Housing feed-through through pipe socket: No
Housing feed-through through stepped diaphragm: No
For pipe diameter: 20 mm
Pipe locking: No
Pipe locking optional: No
Entry from rear: Yes
Material: Plastic
Halogen-free: No
Color: White
Protection class (IP): IP3X
Design cover: Dummy cover
Transparent cover: No
Cover fixing: Screwed
Sealable: No
Functional integrity: Without
With shielding: No
Airtight: No
Max. conductor cross-section: 16 mm²: No
Conductor cross-section: 16 mm²
Light hook fastening: No
Spigot: Without
With nail lugs: No
Special application: Other
Kaiser junction box 9197-91: Further details
Hollow wall junction box, 235 x 205 x 72 mm, with cover, with device screws.
5. Kaiser Flush-mount housing
Kaiser UP Installation Box 1092-28
Manufacturer: Kaiser
Designation: UP Installation Box 240x280x102mm
Type: 1092-28
Mounting Type: Flush-mounted
Shape: Rectangular
Design: Junction Box
Version: Single
With Rotatable Ring: No
Couplable: No
Filling: None
Length: 240 mm
Width: 280 mm
Depth: 102 mm
Internal Depth: 78 mm
Device Mounting: Screws
With Screws: No
Housing Entry through Breakout Opening: Yes
Housing Entry through Sealing Membrane: No
Housing Entry through Pipe Socket: No
Housing Entry through Step Membrane: No
For Pipe Diameter: 32 mm
Suitable for Cable Diameter: 21.3 mm
Pipe Locking: Yes
Pipe Locking Optional: No
Rear Entry: No
Number of Entries: 74
Material: Plastic
Halogen-Free: Yes
Color: White
Protection Class (IP): IP2X
Cover Design: Other
Transparent Cover: No
Cover Attachment: Screwed
Sealability: No
Function Preservation: None
With Shielding: No
Air Tight: No
Max. Conductor Cross-Section: 10 mm²
Terminal Position Fixed: No
Light Hook Attachment: No
Socket: None
Special Application: None
With Partition Wall: No
Kaiser UP Installation Box 1092-28: Additional Details
Universal installation box with mineral fiber plate, 240 x 280 x 102 mm (1092-28). Universal installation boxes for various device installations ensure optimal installation space for devices of all kinds. The intelligent design of the six boxes provides stability and a firm hold in the wall.
Installation Type: Basic Installation
Application Area: For Built-in Devices
Length: 240 mm
Depth: 102 mm
Width: 280 mm.
6. Kaiser connector socket
Kaiser device box 1055-41 Manufacturer: Kaiser Designation: device box Type: 1055-41 Mounting type: flush-mounted Shape: round Design: device box Design: single With rotating ring: no Couplable: yes Equipment: without Diameter: 60 mm Depth: 46 mm For number of device inserts: 1 Fastening of devices: screw With screws: no Housing feed-through through knock-out opening: yes Housing feed-through through sealing membrane: no Housing feed-through through pipe socket: yes Housing feed-through through stepped diaphragm: no For pipe diameter: 20/25 mm Pipe locking: no Pipe locking optional: no Entry from rear: yes Number of entries: 7 Material: plastic Halogen-free: yes Surface protection: untreated Color: black Protection class (IP): IP2X Cover design: without Transparent cover: no Sealable: no Function maintenance: without With shielding: no Airtight: no Luminaire hook fastening: no Socket: Tunnel spigot With nail tabs: no Special application: otherKaiser device box 1055-41: more detailsUnder-wall device box, object packaging , EAN: 4013456531994.
7. Kaiser Flange angle
The 90-degree flange angle from Kaiser Elektro is a high-quality component designed for use in junction boxes. With a thread size of M63x1.5, this flange angle provides a reliable connection and is ideal for various applications in electrical installations. The flange angle is made from a special material known for its robustness and durability. It is suitable for temperatures ranging from -40 to +100 °C, making it versatile for different environments. The compression technique ensures a secure and stable connection, while the 90° design allows for easy integration into existing systems. This flange angle is an excellent choice for professionals who value quality and reliability.
- Operating temperature from -40 to +100 °C
- Compression technique for secure connections
- Robust design with a 90° angle.
8. Kaiser Installation housing HaloX 250
The HaloX 250 installation housing from Kaiser Elektro is a versatile solution for installing lights and speakers in cast concrete. With a modular design and a maximum lamp diameter of 280 mm, this housing offers the flexibility to integrate various front parts that can take both round and square shapes. It is suitable for high-voltage, low-voltage, and LED lights, supporting a lamp power of up to 100 W. The construction made of dimensionally stable plastic ensures high stability and durability. The innovative design allows for easy and precise positioning of the front parts, which are moisture-resistant and can be adjusted even after installation. The tool-free opening technology simplifies the installation of pipes and ensures secure pipe retention. The HaloX 250 is therefore an ideal choice for professional electrical installations indoors.
- Modular system for flexible integration of lights and speakers
- Moisture-resistant front parts for reliable use
- Tool-free opening technology for easy pipe installation
- Secure pipe retention with depth stop
- Easy readjustment of front parts after installation.
9. Kaiser Cavity wall
Kaiser cavity wall device junction box 9064-32
Manufacturer: Kaiser
Name: Cavity wall device junction box
Type: 9064-32
Mounting type: Cavity wall
Shape: Round
Design: Connector box
Design: Single
Couplable: Yes
Equipment: Without
Diameter: 68 mm
Depth: 62 mm
Inside depth: 62 mm
For number of service outlets: 1
Mounting of devices: Screw
With screws: Yes
Housing feed-through through knock-out opening: Yes
Housing feed-through through sealing diaphragm: No
Housing feed-through through pipe socket: No
Housing feed-through through stepped diaphragm: No
Pipe locking: No
Entry from rear: Yes
Number of entries: 12
Number of grommets supplied: 7
Material: Plastic
Halogen-free: No
Surface protection: Other
Color: Orange
Protection class (IP): IP3X
Cover design: Without
Transparent cover: No
Cover fixing: Screwed
Sealable: No
Functional integrity: Without
With shielding: No
Air-tight: No
Max. conductor cross-section: 2.5 mm²
Terminal position-fixed: No
Luminaire hook fastening: No
Spigot: Tunnel spigot
With nail lugs: No
Special application: None
Kaiser cavity wall device junction box 9064-32: more details
Cavity wall device connection box O-range®, with device screws, depth 62 mm, object packaging.
10. Kaiser Device junction box

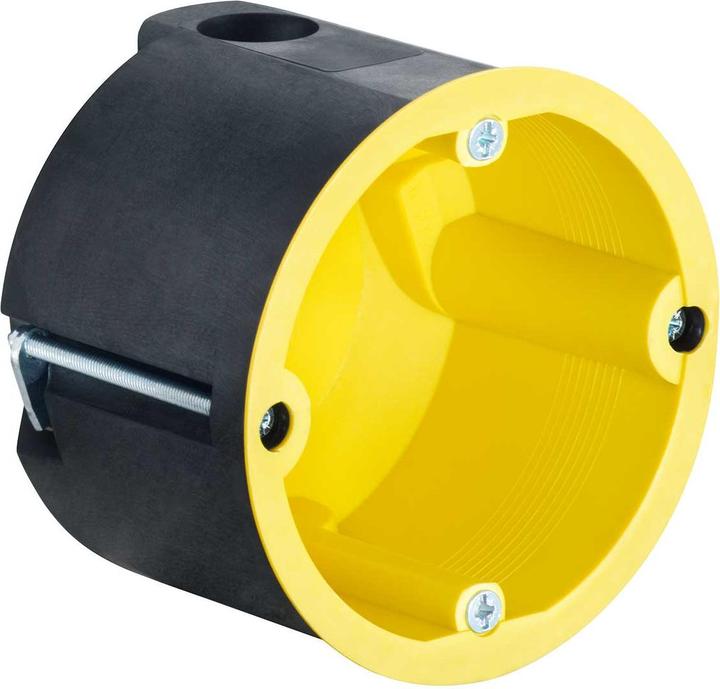

Kaiser Device Connection Box 9074-01
Manufacturer: Kaiser
Description: Device Connection Box
Radiation Protection: bf
Type: 9074-01
Mounting Type: Hollow Wall
Shape: Round
Design: Device Connection Box/Box
Version: Single
With Rotatable Ring: No
Couplable: Yes
Filling: None
Diameter: 74 mm
Depth: 58.5 mm
Internal Depth: 54.5 mm
Suitable for Wall/Panel Thickness: 7-40 mm
For Number of Device Inserts: 1
Device Fastening: Screws
With Screws: Yes
Housing Entry through Breakout Opening: No
Housing Entry through Sealing Membrane: No
Housing Entry through Pipe Socket: No
Housing Entry through Step Membrane: No
Suitable for Cable Diameter: 4-11.5 mm
Pipe Locking: No
Pipe Locking Optional: No
Rear Entry: No
Number of Entries: 4
Material: Plastic
Halogen-Free: Yes
Surface Protection: Untreated
Color: Yellow
Protection Class (IP): IP3X
Cover Design: None
Transparent Cover: No
Cover Fastening: Screwed
Sealability: No
Function Preservation: None
With Shielding: Yes
Air Tight: Yes
Max. Conductor Cross-Section: 2.5 mm²
Terminal Position Fixed: No
Light Hook Fastening: No
Socket: Other
Special Application: Radiation Protection
With Partition Wall: No
The innovative radiation protection box from Kaiser protects against medically used radiation, for example, in X-ray facilities. Due to the high density of the radiation protection compound, both soft and hard X-rays are absorbed. The box is particularly suitable for lead-free radiation protection walls and ensures a lead equivalence of the wall up to 3 mm Pb due to its dose-reducing effect in the tube voltage range between 40 - 150 kV, even with opposite installation.
Application Area: For Built-in Devices
Halogen-Free: Yes
Milling Hole Ø: 74 mm
Depth: 58.5 mm
Installation Type: Radiation Protection.
