Best selling Junction boxes from Warema
On this page you'll find a ranking of the best Warema products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Warema 1002837
Warema Sonnen cavity wall/UP housing 1002837
Manufacturer: Warema Sonnen
Designation: Cavity wall/UP housing for complete installation Wisotr.
Type: 1002837
Mounting type: Cavity wall
Shape: Rectangular
Design: Junction box
Design: Single
With rotating ring: No
Couplable: No
Mounting: Terminal
Diameter: 68 mm
Length: 169.1 mm
Width: 89.3 mm
Depth: 49 mm
Internal depth: 1 mm
Suitable for wall/board thickness: 1 mm
For number of service outlets: 1
Mounting of units: Screws
With screws: Yes
Enclosure lead-through through knock-out opening: Yes
Enclosure lead-through through sealing diaphragm: No
Enclosure lead-through through pipe socket: No
Enclosure lead-through through stepped diaphragm: No
For tube diameter: 19 mm
Suitable for cable diameter: 1 mm
Tube locking: No
Tube locking optional: No
Entry from rear: Yes
Number of entries: 6
Material: Plastic
Halogen-free: No
Surface protection: Untreated
Colour: Other
Protection class (IP): IP30
Protection class (NEMA): Other
Version Cover: Without
Transparent cover: No
Cover fastening: Other
Sealable: No
Functional integrity: Without
With shield: No
Airtight: No
Max. conductor cross-section: 2.5 mm²
Number of poles of terminal: 1
Terminal position-fixed: No
Luminaire hook fastening: No
Spigot: Without
With nail straps: No
Special application: Without
Warema Sonnen cavity wall/UP enclosure 1002837: further details
Cavity wall box for Warema Wistronic with a wall projection of 7 mm, which allows the control panel to be installed almost flush with the surface. Cavity wall box only available in white.
2. Warema AP housing
Warema Sonnen surface-mounted enclosure 317030
Manufacturer: Warema Sonnen
Designation: Surface-mounted enclosure for MSE Piccolo/HT
Type: 317030
Assembly: Surface-mounted enclosure
Suitable for modular installation switch ranges: No
Number of modules (for modular design): 1
Number of units: 1
Mounting direction: Horizontal and vertical
Shape: Square
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Finish: Matt
Colour: Grey
RAL number (similar): 7035
Transparent: No
With cover frame: No
Cross-duct mounting: No
With duct entry: No
With cable entry: Yes
With screwed gland entry: No
Impact-resistant: Yes
Protection class (IP): IP54
Unit width: 88 mm
Device height: 35 mm
Device depth: 88 mm
Further details: Junction box without terminals, suitable for indoor installations and for protected outdoor installation.
EAN: 4251317203608.

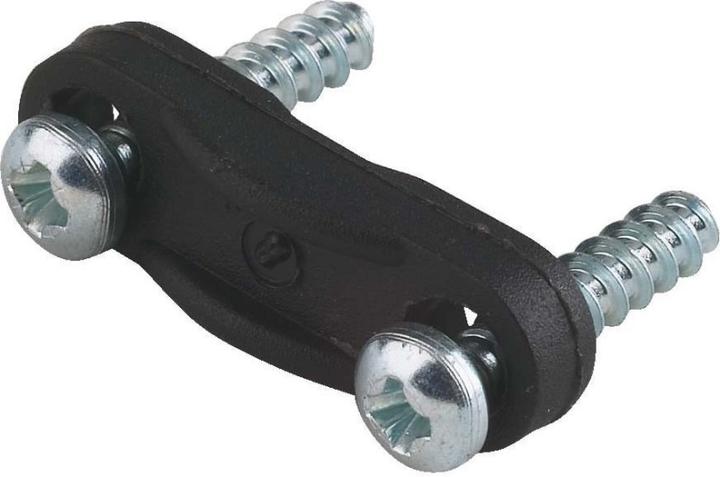

3. Warema Strain relief set
Warema Sonnen strain relief set 1002236 Manufacturer :Warema Sonnen Designation :Strain relief set for surface-mounted housing Type :1002236 Type of accessory/spare part :other Accessories :yes Spare part :no Colour :other Warema Sonnen strain relief set 1002236: more details Consisting of 25 brackets and 50 screws , EAN: 4251317202144.
